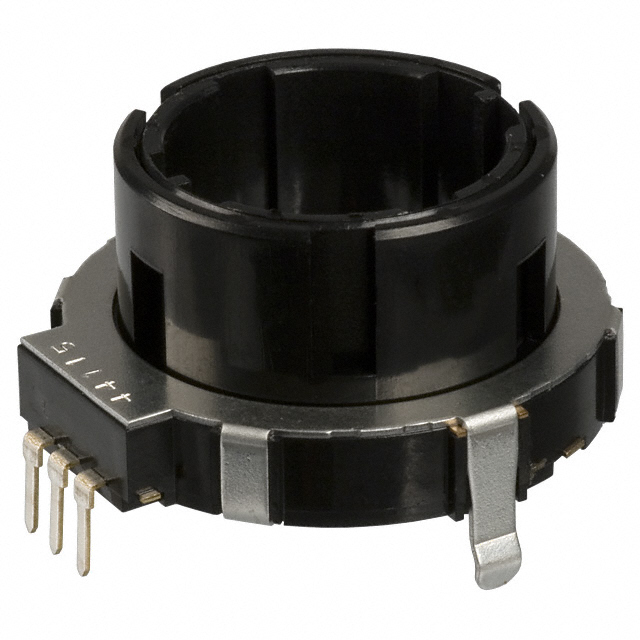

EVQ-WFP00415B
ROTARY ENCODER MECHANICAL 15PPRManufacturer: Panasonic Electronic Components
Categories: Encoders
Quality Control: Learn More
Panasonic Electronic Components EVQWF Series EVQ-WFP00415B is a mechanical rotary encoder featuring a 15 pulses per revolution (PPR) quadrature output. This vertical mount, through-hole PCB component utilizes an open center actuator with a 16.5mm stroke and includes detents for tactile feedback. Designed for reliability, it offers a rotational life of at least 30,000 cycles. The encoder's termination style is PC pin, and it is supplied in bulk packaging. This component is commonly found in industrial automation, consumer electronics, and automotive control systems requiring precise rotational input and positioning.
Additional Information
Series: EVQWFRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 15 |
| Actuator Type | 16.5mm Open Center |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
EVE-GA1F2224B
ROTARY ENCODER MECHANICAL 24PPR

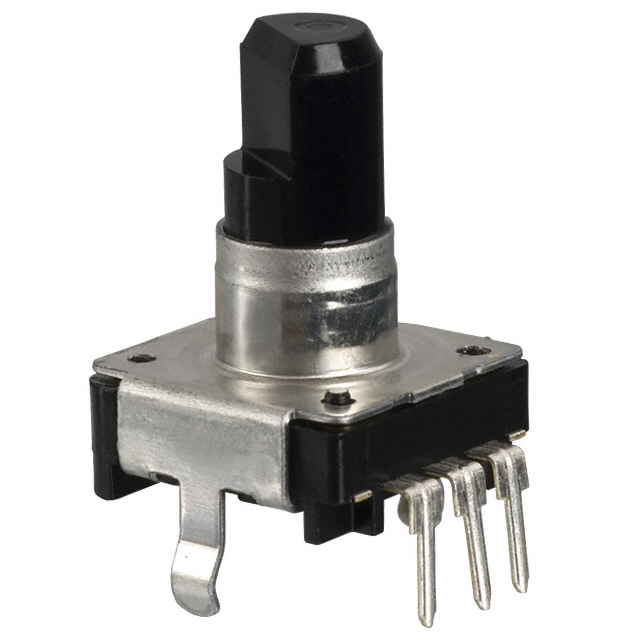

EVE-GA1F1724M
