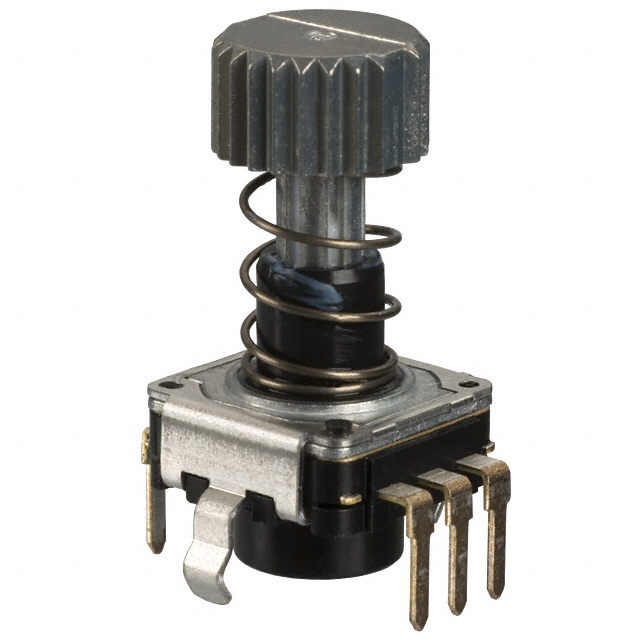

EVQ-WEH00115B
ROTARY ENCODER MECHANICAL 15PPRManufacturer: Panasonic Electronic Components
Categories: Encoders
Quality Control: Learn More
Panasonic Electronic Components EVQWEH series rotary encoder, part number EVQ-WEH00115B. This mechanical quadrature encoder offers 15 pulses per revolution with a vertical PCB through-hole mounting style. It features a 9mm diameter knurled end actuator and includes detents for tactile feedback. The rotational life is rated for a minimum of 15,000 cycles. This component is suitable for applications in consumer electronics and industrial automation where precise rotational sensing is required. The termination style is PC Pin.
Additional Information
Series: EVQWEHRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 15 |
| Actuator Type | 9mm Dia Knurled End |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 15k |
| Programmable | Not Verified |
