EVQ-V6G02115B
ROTARY ENCODER MECHANICAL 15PPRManufacturer: Panasonic Electronic Components
Categories: Encoders
Quality Control: Learn More
Panasonic Electronic Components EVQV series rotary encoder, part number EVQ-V6G02115B. This mechanical quadrature encoder offers 15 pulses per revolution for precise rotational positioning. Featuring a 20mm open center actuator and vertical PCB through-hole mounting, it is designed for reliable integration into various electronic systems. The encoder provides incremental output signals and includes detents for tactile feedback. With a rotational life of a minimum of 30,000 cycles, it is suitable for applications in consumer electronics, industrial control, and automotive systems where accurate position sensing is critical. The termination style is PC Pin.
Additional Information
Series: EVQVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 15 |
| Actuator Type | 20mm Open Center |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

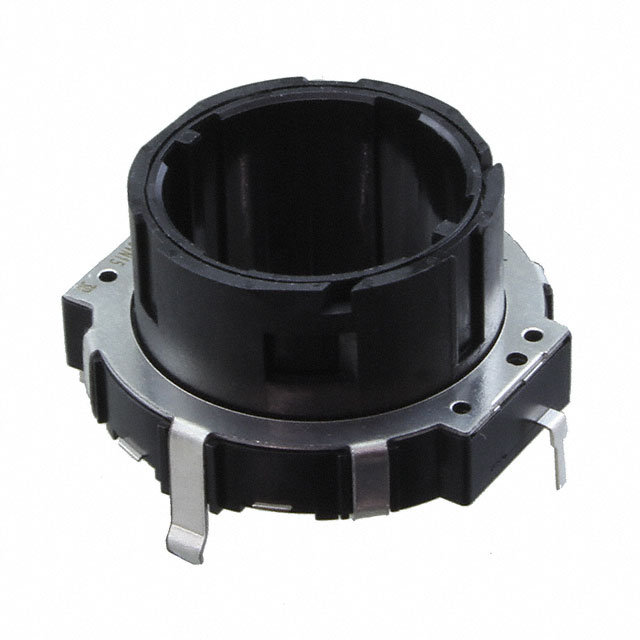

EVQ-V5102309B
