EVQ-V6B00909B
ROTARY ENCODER MECHANICAL 9PPRManufacturer: Panasonic Electronic Components
Categories: Encoders
Quality Control: Learn More

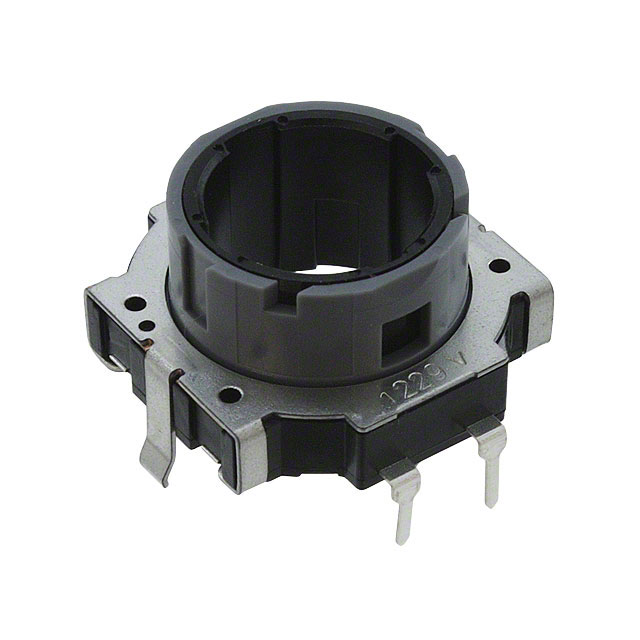

Panasonic Electronic Components EVQ-V6B00909B is a mechanical rotary encoder designed for PCB mounting via through-hole termination. This vertical-mount component offers 9 pulses per revolution (9 PPR) in quadrature (incremental) output format, providing precise rotational position feedback. It features a 20mm open-center actuator and includes a detent mechanism for tactile feedback. With a rotational life of a minimum of 30,000 cycles, this encoder is suitable for applications requiring reliable mechanical input in industrial automation, consumer electronics, and automotive systems. The encoder type is mechanical, and it does not incorporate a built-in switch. Packaging is provided in bulk.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 9 |
| Actuator Type | 20mm Open Center |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
