EVQ-V6A00609B
ROTARY ENCODER MECHANICAL 9PPRManufacturer: Panasonic Electronic Components
Categories: Encoders
Quality Control: Learn More

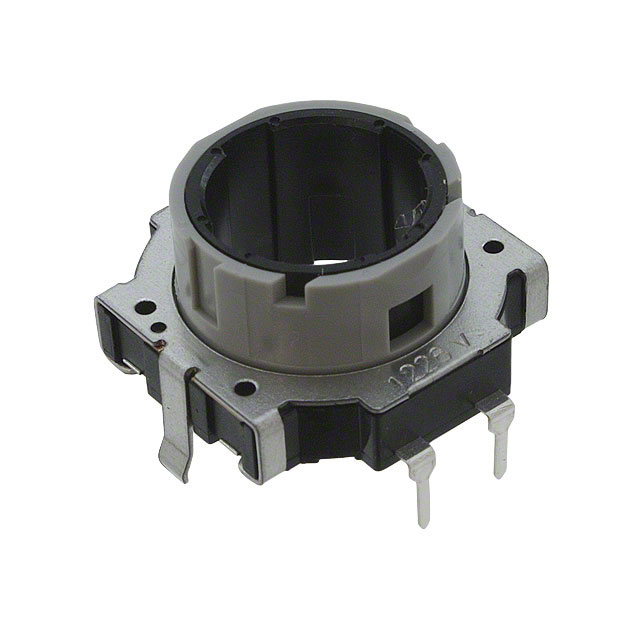

Panasonic Electronic Components EVQ-V6A00609B is a vertical, PCB mount mechanical rotary encoder with a 9 pulse per revolution output. This through-hole component features a 20mm open center actuator and detents for tactile feedback. The encoder's quadrature (incremental) output is suitable for applications requiring precise rotational position sensing. With a rotational life of at least 30,000 cycles, it is engineered for reliability in demanding environments. The PC pin termination style ensures secure mounting onto printed circuit boards. This component is commonly utilized in industrial control systems, consumer electronics, and automotive applications where accurate rotary input is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 9 |
| Actuator Type | 20mm Open Center |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
