EVQ-1WF00210B
ROTARY ENCODER MECHANICAL 20PPRManufacturer: Panasonic Electronic Components
Categories: Encoders
Quality Control: Learn More

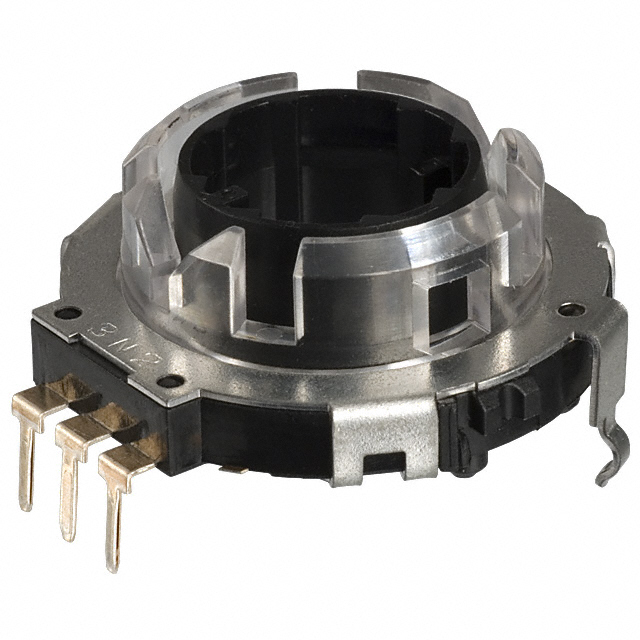

Panasonic Electronic Components EVQ-1WF00210B is a vertical, PCB mount, mechanical rotary encoder. This through-hole component features a 22mm open center actuator with a detent mechanism, providing 20 pulses per revolution in quadrature (incremental) output format. Designed for high-volume applications, it offers a rotational life of at least 50,000 cycles. The PC pin termination style ensures reliable connection. This encoder is suitable for applications in industrial automation, consumer electronics, and automotive systems where precise rotational feedback is required.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 20 |
| Actuator Type | 22mm Open Center |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 50k |
| Programmable | Not Verified |
