EVE-YFCCL516B
ROTARY ENCODER MECHANICAL 16PPRManufacturer: Panasonic Electronic Components
Categories: Encoders
Quality Control: Learn More

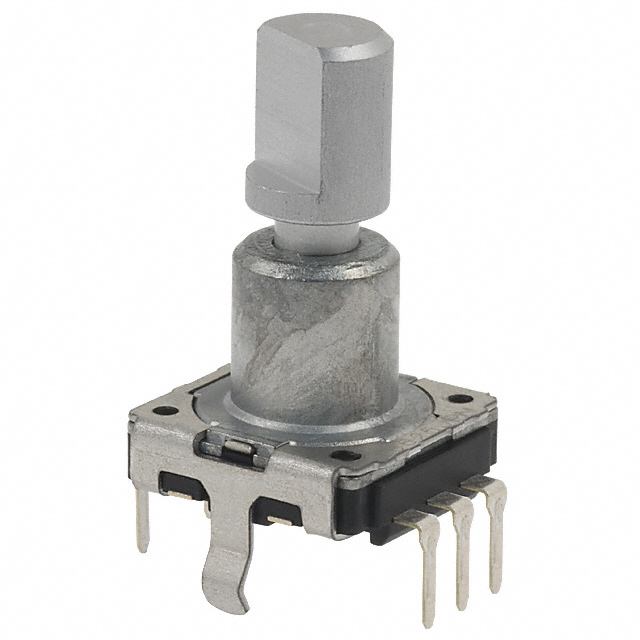

Panasonic Electronic Components EVE-YFCCL516B is a mechanical rotary encoder designed for precise rotational input. This vertical mount, through-hole component provides 16 pulses per revolution in a quadrature (incremental) output format, enabling accurate position sensing. Featuring an 8mm diameter flatted end actuator, it offers a tactile detent for distinct operational feedback. The encoder includes a built-in switch, expanding its functional capabilities. With a rotational life of at least 30,000 cycles, it is suitable for demanding applications in consumer electronics, industrial automation, and audio equipment, where reliable, incremental rotational control is critical. The PC pin termination ensures secure PCB mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 16 |
| Actuator Type | 8mm Dia Flatted End |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
