EVE-WRHJR012B
ROTARY ENCODER MECHANICAL 12PPRManufacturer: Panasonic Electronic Components
Categories: Encoders
Quality Control: Learn More

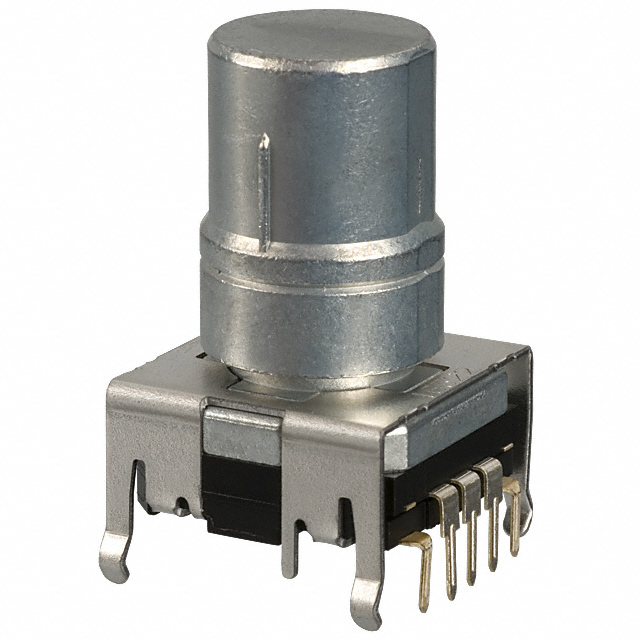

Panasonic Electronic Components EVE-WRHJR012B is a mechanical rotary encoder designed for precise rotational input. This vertical mount component features a 6mm diameter flatted end actuator and provides 12 pulses per revolution (PPR) in a quadrature (incremental) output format. The EVE-WRHJR012B is equipped with a built-in switch and detents for tactile feedback. Its PC pin termination style facilitates PCB mounting via through-hole technology. With a rotational life of 200,000 cycles minimum and a supply voltage of 10V, this encoder is suitable for demanding applications in consumer electronics and industrial automation where reliable position sensing is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | 10V |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 12 |
| Actuator Type | 6mm Dia Flatted End |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | 200k |
| Programmable | Not Verified |
