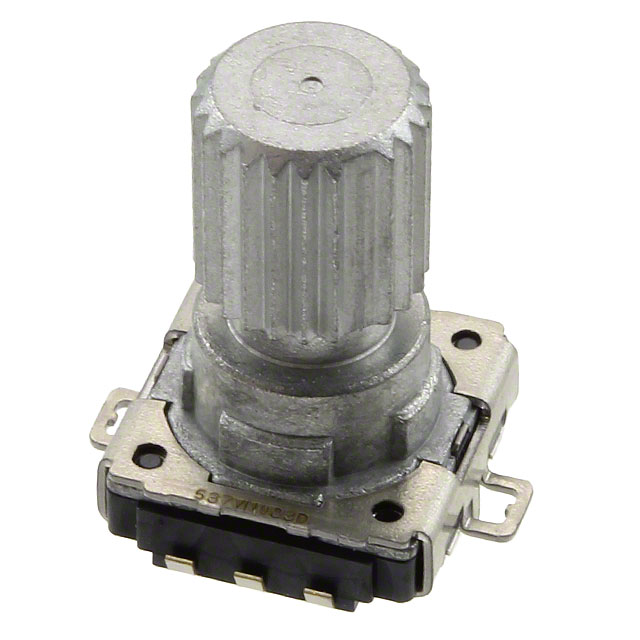

EVE-UPCAH508B
ROTARY ENCODER MECHANICAL 8PPRManufacturer: Panasonic Electronic Components
Categories: Encoders
Quality Control: Learn More
Panasonic Electronic Components EVE-UPCAH508B is a vertical, surface-mount mechanical rotary encoder designed for precise rotational control. This component features 8 pulses per revolution (PPR) and provides quadrature (incremental) output signals, enabling accurate position sensing. The 8mm diameter flatted end actuator is complemented by a built-in switch and detent functionality, offering tactile feedback and an additional input option. With a rotational life of a minimum of 30,000 cycles and a 5V supply voltage, the EVE-UPCAH508B is engineered for reliability in demanding applications. Termination is via solder tabs. This encoder is commonly utilized in industrial automation, consumer electronics, and automotive systems where mechanical input and precise feedback are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Surface Mount |
| Orientation | Vertical |
| Termination Style | Solder Tab |
| Voltage - Supply | 5V |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 8 |
| Actuator Type | 8mm Dia Flatted End |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
