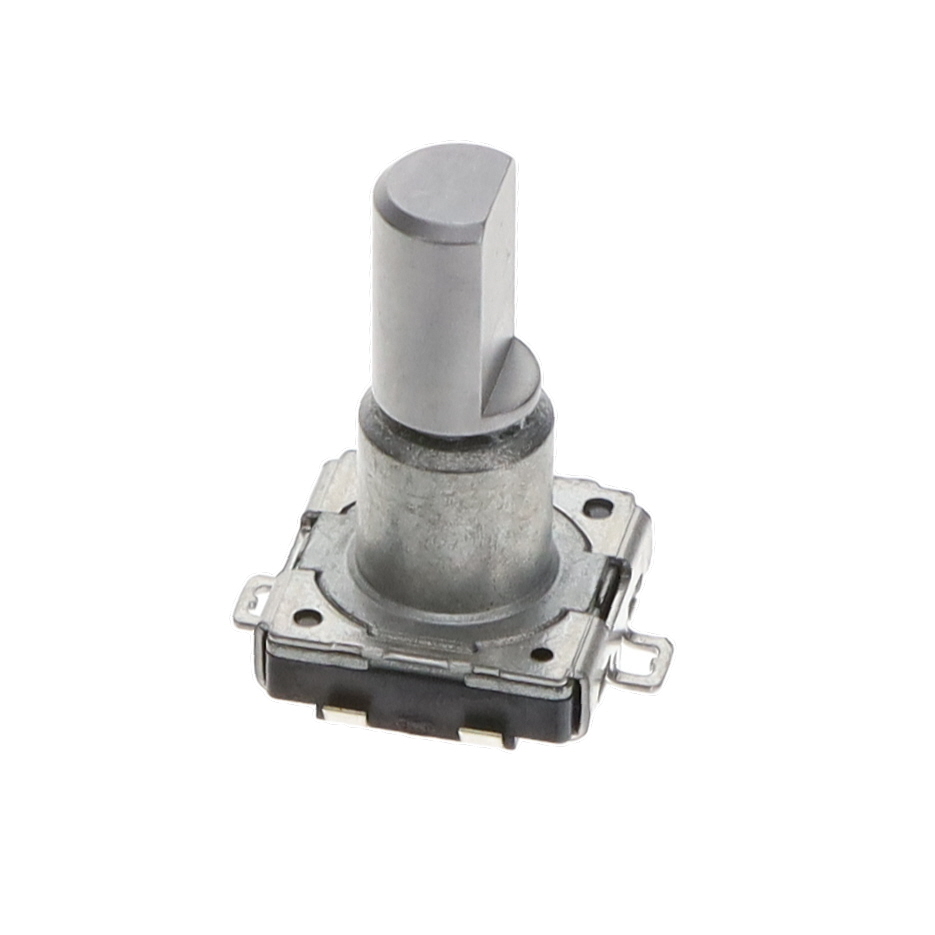

EVE-RLCJL008B
ROTARY ENCODER MECHANICAL 8PPRManufacturer: Panasonic Electronic Components
Categories: Encoders
Quality Control: Learn More
Panasonic Electronic Components EVER series EVE-RLCJL008B is a mechanical rotary encoder with 8 pulses per revolution (PPR) outputting in quadrature. This vertical mount encoder features a 6mm diameter flatted end actuator and includes a built-in switch with detent. Designed for surface mounting, it utilizes solder tab termination for reliable connectivity. With a rotational life of a minimum of 30,000 cycles, this component is suitable for applications in industrial automation, consumer electronics, and automotive systems where precise rotational feedback is required.
Additional Information
Series: EVERRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Surface Mount |
| Orientation | Vertical |
| Termination Style | Solder Tab |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 8 |
| Actuator Type | 6mm Dia Flatted End |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
