EVE-KC2F2024B
ROTARY ENCODER MECHANICAL 24PPRManufacturer: Panasonic Electronic Components
Categories: Encoders
Quality Control: Learn More
Panasonic Electronic Components EVEK series rotary encoder, part number EVE-KC2F2024B. This mechanical encoder features a vertical mounting orientation with PCB through-hole termination. It provides 24 pulses per revolution (PPR) in quadrature (incremental) output format. The actuator is a 6mm diameter flatted end. Designed for applications requiring precise rotational feedback, this encoder has a rotational life of a minimum of 15,000 cycles. Its robust construction and reliable performance make it suitable for use in industrial automation, consumer electronics, and instrumentation.
Additional Information
Series: EVEKRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Panel, PCB Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | No |
| Pulses per Revolution | 24 |
| Actuator Type | 6mm Dia Flatted End |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 15k |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

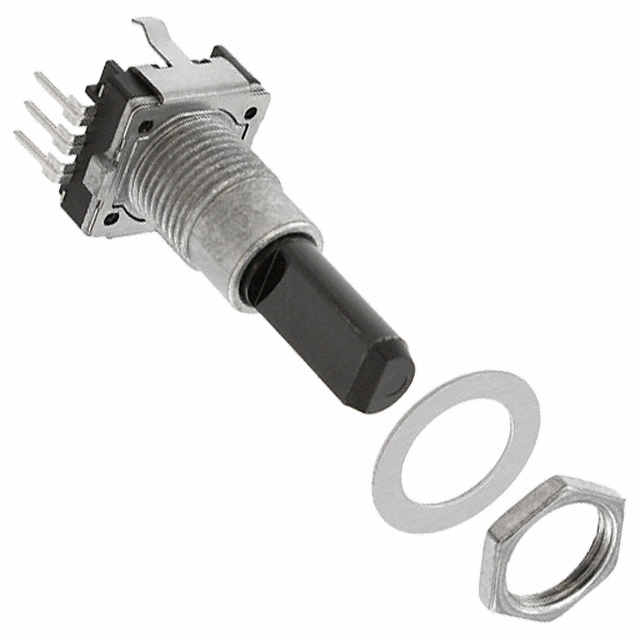

EVE-KD2F3024M
ROTARY ENCODER MECHANICAL 24PPR

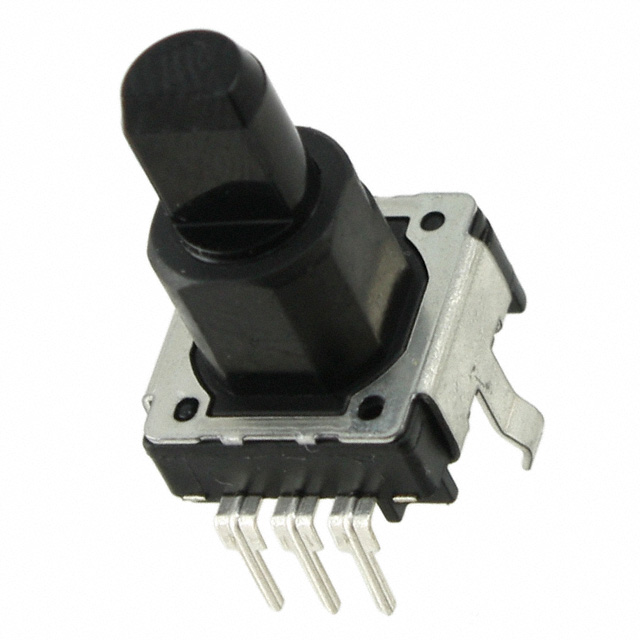

EVE-KE2F2024B
