EVE-JBBF2020B
ROTARY ENCODER MECHANICAL 20PPRManufacturer: Panasonic Electronic Components
Categories: Encoders
Quality Control: Learn More

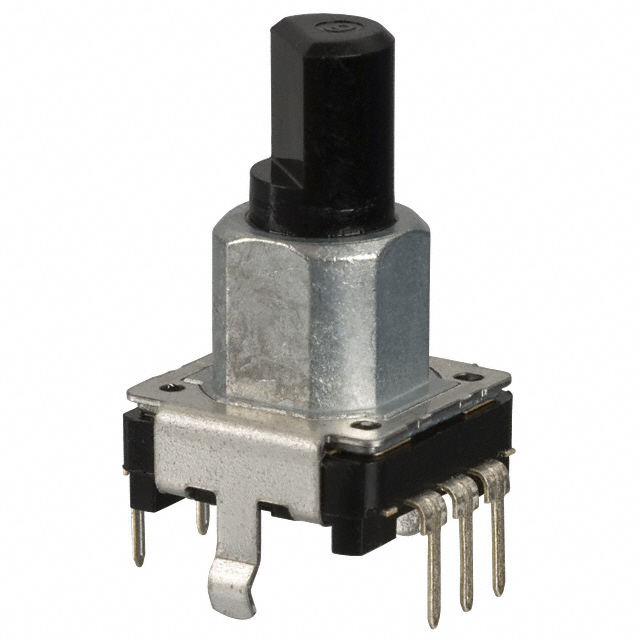

Panasonic Electronic Components EVEJB Series EVE-JBBF2020B is a mechanical rotary encoder with 20 pulses per revolution (PPR) outputting quadrature (incremental) signals. This vertical mount, through-hole component features a 6mm diameter flatted end actuator and includes a built-in switch with detent functionality. Designed for robust performance, it offers a rotational life of at least 30,000 cycles. The EVEJB series is utilized in applications across industrial automation, consumer electronics, and automotive sectors demanding precise rotational feedback and user input. The PC pin termination style ensures reliable PCB integration.
Additional Information
Series: EVEJBRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 20 |
| Actuator Type | 6mm Dia Flatted End |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
