EVE-GA1F2024B
ROTARY ENCODER MECHANICAL 24PPRManufacturer: Panasonic Electronic Components
Categories: Encoders
Quality Control: Learn More
Panasonic Electronic Components EVEG series rotary encoder, part number EVE-GA1F2024B. This mechanical encoder offers 24 pulses per revolution with quadrature output for precise rotational feedback. Featuring detents for tactile positioning and a 6mm diameter flatted end actuator, it is designed for vertical PCB mounting via through-hole termination. The EVE-GA1F2024B boasts a rotational life of a minimum of 30,000 cycles. This component is suitable for applications in consumer electronics, industrial control systems, and automotive interfaces where accurate rotary input is critical. It is supplied in bulk packaging.
Additional Information
Series: EVEGRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | PCB, Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 24 |
| Actuator Type | 6mm Dia Flatted End |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
EVE-GA1F1724M
ROTARY ENCODER MECHANICAL 24PPR

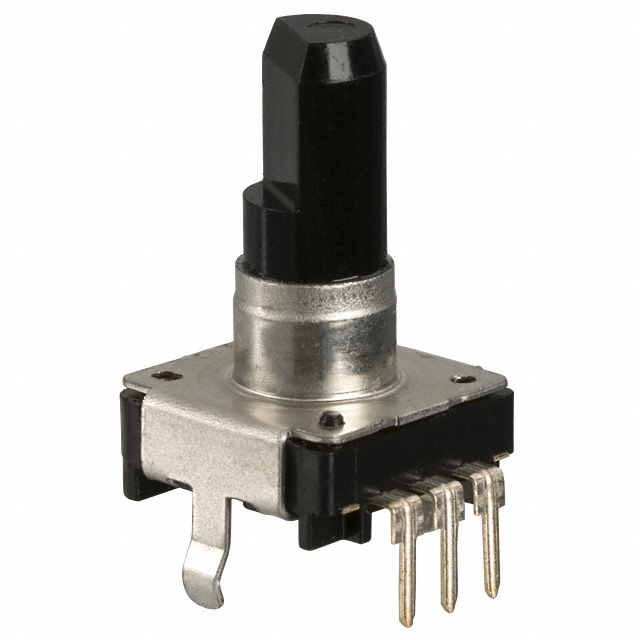

EVE-GA1F2012B
