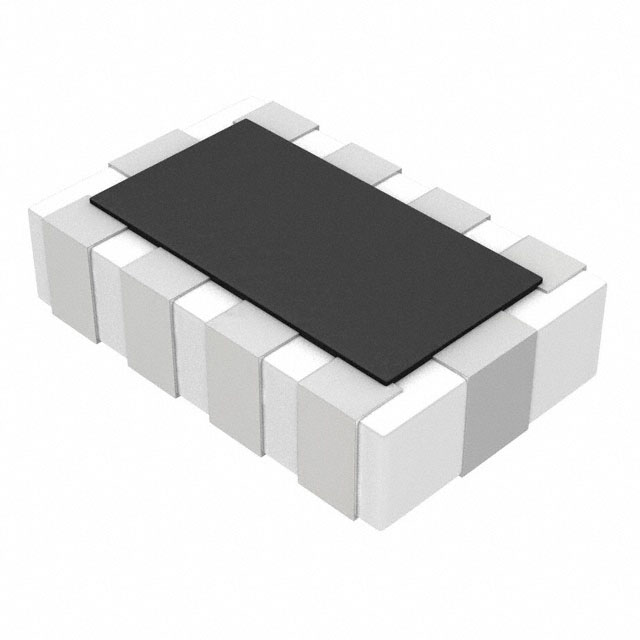

EZA-CT30AAAJ
FILTER RC 100 OHM/10PF SMDManufacturer: Panasonic Electronic Components
Categories: EMI/RFI Filters (LC, RC Networks)
Quality Control: Learn More
Panasonic Electronic Components EZACT series RC EMI filter, part number EZA-CT30AAAJ, offers a 1st order, low-pass configuration for data line filtering. This component features four independent channels, each with a 100 Ohm resistance and 10 pF capacitance. The filter is housed in an 0805 (2012 Metric) package with dimensions of 2.00mm x 1.25mm and a height of 0.65mm. Designed for surface mount applications, it operates within a temperature range of -25°C to 85°C and has a voltage rating of 12V. This filter is commonly utilized in mobile devices for robust data line EMI suppression. It is supplied on tape and reel.
Additional Information
Series: EZACTRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 12V |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079"" L x 0.049"" W (2.00mm x 1.25mm) |
| Mounting Type | Surface Mount |
| Type | Low Pass |
| Operating Temperature | -25°C ~ 85°C |
| Values | R = 100Ohms, C = 10pF |
| Height | 0.026"" (0.65mm) |
| Attenuation Value | - |
| Filter Order | 1st |
| Applications | Data Lines for Mobile Devices |
| Technology | RC |
| Center / Cutoff Frequency | - |
| Resistance - Channel (Ohms) | 100 |
| ESD Protection | No |
| Number of Channels | 4 |
Request a Quote
Clients Also Buy

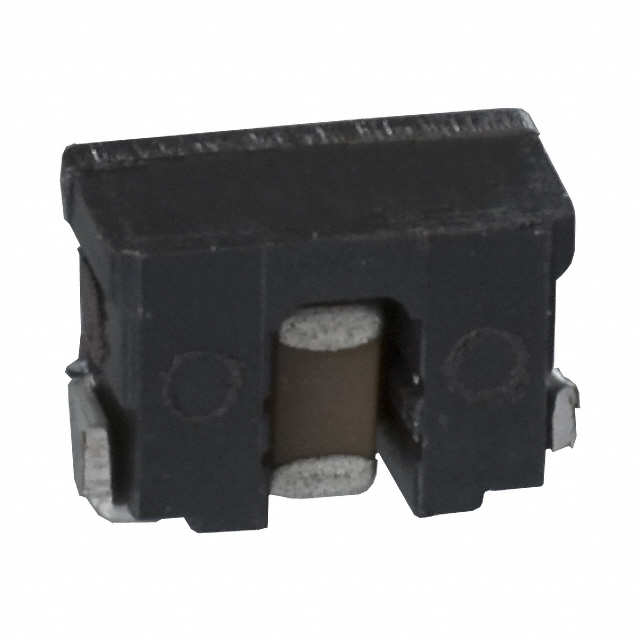

ELK-E333FA
FILTER LC(T) 0.033UF 200KHZ SMD

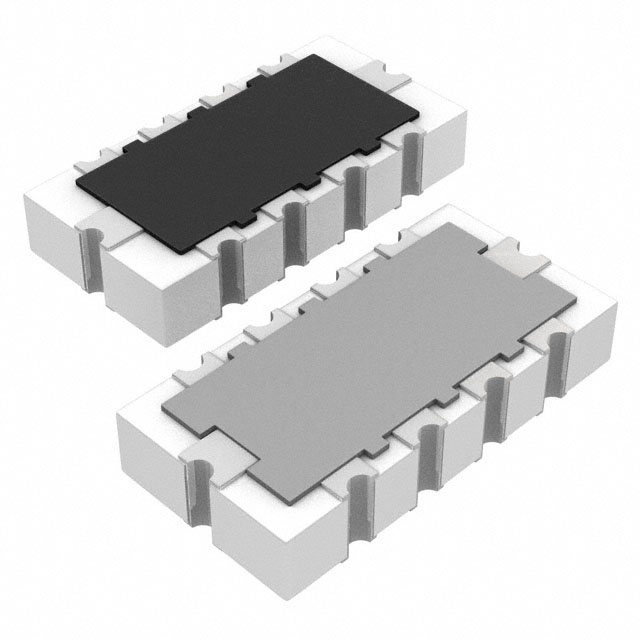

EZA-DT23AAAJ
