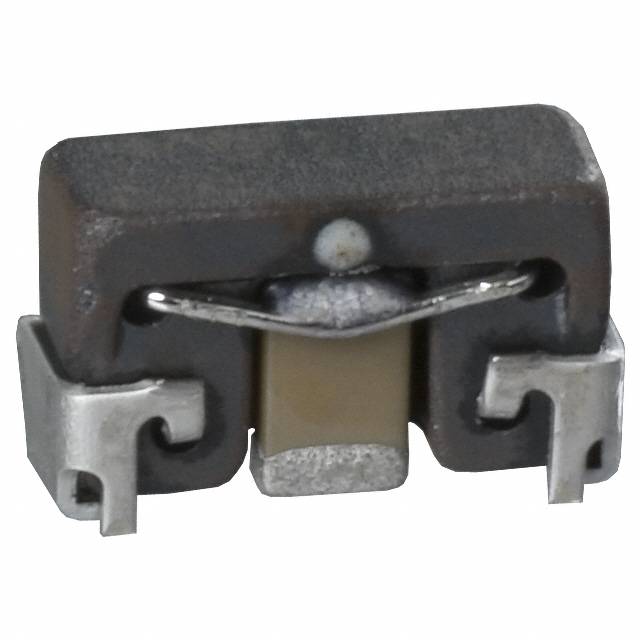

EXC-CET103U
FILTER LC(T) 0.01UF 32MHZ SMDManufacturer: Panasonic Electronic Components
Categories: EMI/RFI Filters (LC, RC Networks)
Quality Control: Learn More
LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 10000pF 2 A 1807 (4518 Metric), 3 PC Pad
Additional Information
Series: EXCCETRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 50V |
| Package / Case | 1807 (4518 Metric), 3 PC Pad |
| Size / Dimension | 0.177"" L x 0.071"" W (4.50mm x 1.80mm) |
| Mounting Type | Surface Mount |
| Type | Low Pass |
| Operating Temperature | -40°C ~ 85°C |
| Values | C = 10000pF |
| Height | 0.118"" (3.00mm) |
| Attenuation Value | 25dB @ 15MHz ~ 120MHz |
| Filter Order | 3rd |
| Applications | Data Lines for Mobile Devices |
| Technology | LC (T-Type) |
| Center / Cutoff Frequency | 32MHz (Cutoff) |
| Resistance - Channel (Ohms) | 0.05 |
| ESD Protection | No |
| Number of Channels | 1 |
| Current | 2 A |
