MA4ZD1400L
DIODE ARR SCHOT 20V 100MA SMINI4Manufacturer: Panasonic Electronic Components
Categories: Diode Arrays
Quality Control: Learn More

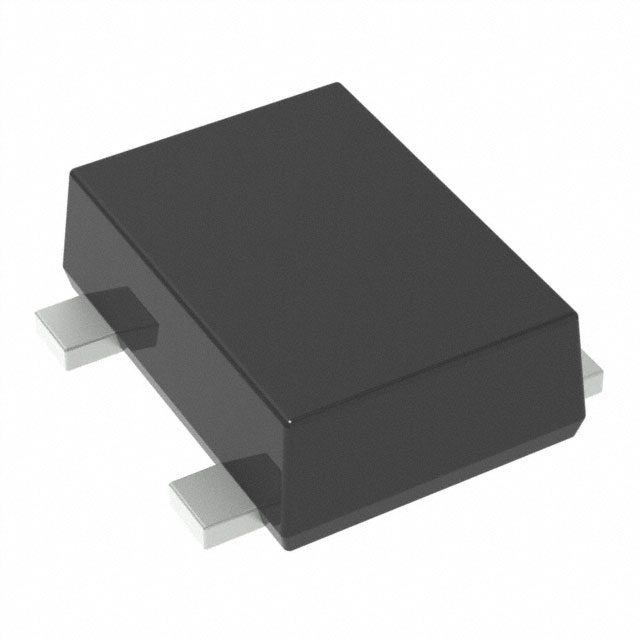

Panasonic Electronic Components MA4ZD1400L is a Schottky diode array featuring two independent diodes. Each diode offers a maximum DC reverse voltage of 20V and an average rectified current of 100mA. This component exhibits a low forward voltage of 400mV at 100mA and a reverse leakage current of 20µA at 10V. With a reverse recovery time of 3ns, it is suitable for high-speed switching applications. The device is packaged in a 4-SMD, Flat Leads (SMini4-F1) configuration and supplied on tape and reel. It finds application in the telecommunications and industrial sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 3 ns |
| Technology | Schottky |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 100mA (DC) |
| Supplier Device Package | SMini4-F1 |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 400 mV @ 100 mA |
| Current - Reverse Leakage @ Vr | 20 µA @ 10 V |
