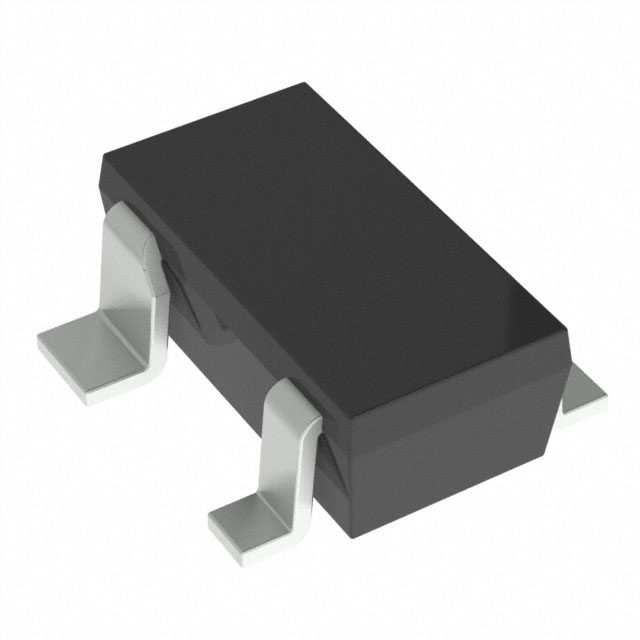

MA4X159AGL
DIODE ARRAY GP 80V 100MA MINI4Manufacturer: Panasonic Electronic Components
Categories: Diode Arrays
Quality Control: Learn More
Panasonic Electronic Components MA4X159AGL is a two-independent diode array in an SC-61AB (Mini4-G3) package. This surface mount component offers 80V reverse voltage and 100mA forward current per diode, with a typical forward voltage of 1.2V at 100mA. The device exhibits a low reverse leakage of 100nA at 75V and a fast reverse recovery time of 3ns, classifying it under small signal diodes. Operating up to a junction temperature of 150°C, this diode array is suitable for applications requiring high-speed switching and signal processing. It is commonly found in consumer electronics and telecommunications equipment. The MA4X159AGL is supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-61AB |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 3 ns |
| Technology | Standard |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 100mA (DC) |
| Supplier Device Package | Mini4-G3 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 100 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 75 V |
