MA4SD1000L

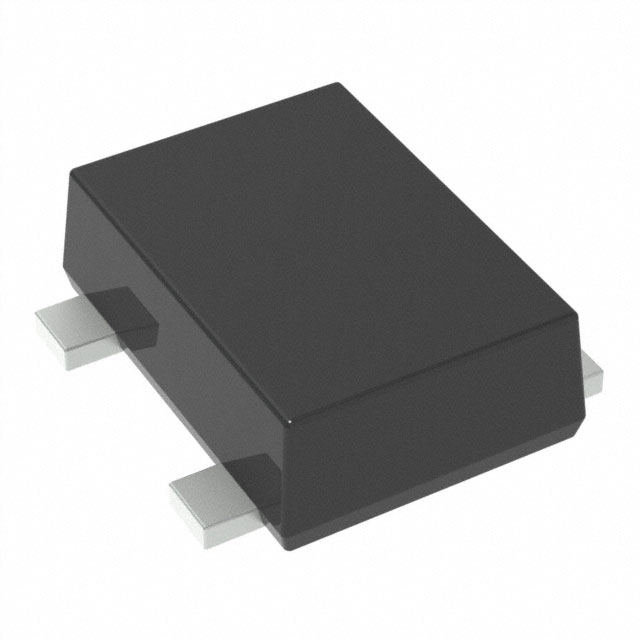

DIODE ARR SCHOTT 20V SSMINI4Manufacturer: Panasonic Electronic Components
Categories: Diode Arrays
Quality Control: Learn More
Panasonic Electronic Components MA4SD1000L is a Schottky diode array featuring two independent diodes. Each diode offers a maximum DC reverse voltage (Vr) of 20 V and a forward voltage (Vf) of 470 mV at a forward current (If) of 200 mA. The average rectified current (Io) per diode is 200 mA, with a reverse leakage of 20 µA at 10 V. This component boasts a fast reverse recovery time (trr) of 3 ns, suitable for signal applications up to 200 mA. It is housed in a 4-SMD, Flat Leads package (SSMini4-F1) and is supplied on tape and reel. The MA4SD1000L is commonly utilized in telecommunications and consumer electronics applications demanding efficient switching and low forward voltage. Operating junction temperature is rated up to 125°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 3 ns |
| Technology | Schottky |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 200mA |
| Supplier Device Package | SSMini4-F1 |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Voltage - Forward (Vf) (Max) @ If | 470 mV @ 200 mA |
| Current - Reverse Leakage @ Vr | 20 µA @ 10 V |
