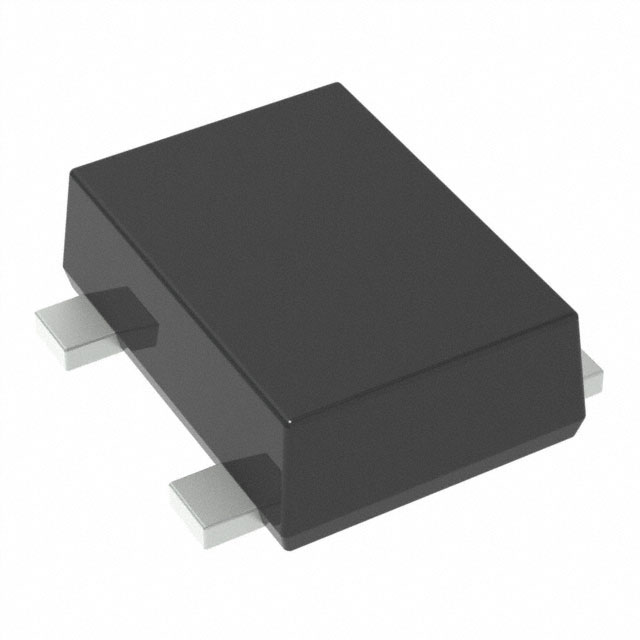

MA4SD0100L
DIODE ARR SCHOT 30V 30MA SSMINI4Manufacturer: Panasonic Electronic Components
Categories: Diode Arrays
Quality Control: Learn More
Panasonic Electronic Components MA4SD0100L is a diode array featuring two independent Schottky diodes. This component is designed for surface mount applications, utilizing a 4-SMD, Flat Leads package (SSMini4-F1). Each diode offers a maximum DC reverse voltage (Vr) of 30V and a maximum forward voltage (Vf) of 900mV at 30mA. The average rectified current (Io) per diode is 30mA (DC), with a reverse leakage current of 500nA at 30V. The MA4SD0100L boasts a fast reverse recovery time of 1ns, making it suitable for high-speed switching applications. Its operating junction temperature can reach up to 125°C. This device finds application in areas such as telecommunications and consumer electronics, where efficient rectification and fast switching are critical. The MA4SD0100L is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 1 ns |
| Technology | Schottky |
| Diode Configuration | 2 Independent |
| Current - Average Rectified (Io) (per Diode) | 30mA (DC) |
| Supplier Device Package | SSMini4-F1 |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 30 mA |
| Current - Reverse Leakage @ Vr | 500 nA @ 30 V |
