MA3U74900L
DIODE ARRAY SCHOTTKY 40V 5A U-G2Manufacturer: Panasonic Electronic Components
Categories: Diode Arrays
Quality Control: Learn More

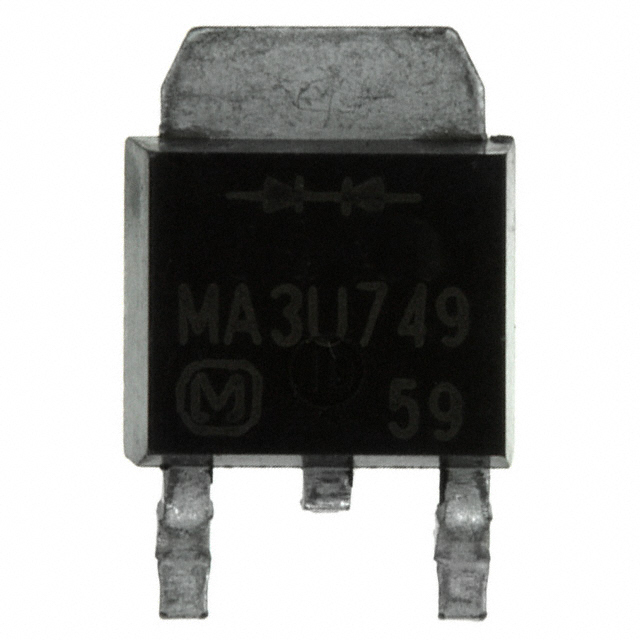

Panasonic Electronic Components' MA3U74900L is a Schottky diode array featuring a common cathode configuration. This surface mount component, housed in a TO-252-3 (DPAK) package, offers a maximum DC reverse voltage of 40V and an average rectified current capability of 5A per diode. The forward voltage drop is specified at 550mV at 2.5A. With a reverse leakage of 1mA at 40V, this diode array is designed for applications requiring efficient rectification and switching. Its operating junction temperature range is -40°C to 125°C. The MA3U74900L finds application in power supply circuits, automotive electronics, and industrial control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 5A |
| Supplier Device Package | U-G2 |
| Operating Temperature - Junction | -40°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 2.5 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 40 V |
