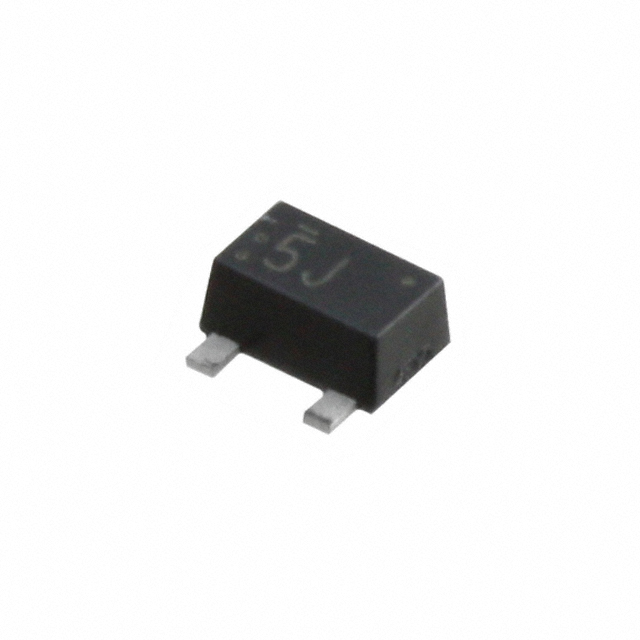

DB3J316N0L
DIODE ARR SCHOT 30V 100MA SMINI3Manufacturer: Panasonic Electronic Components
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Common Cathode 30 V 100mA Surface Mount SC-85
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 11 week(s)Product Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-85 |
| Mounting Type | Surface Mount |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 800 ps |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 100mA |
| Supplier Device Package | SMini3-F2-B |
| Operating Temperature - Junction | 125°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 100 mA |
| Current - Reverse Leakage @ Vr | 15 µA @ 30 V |
