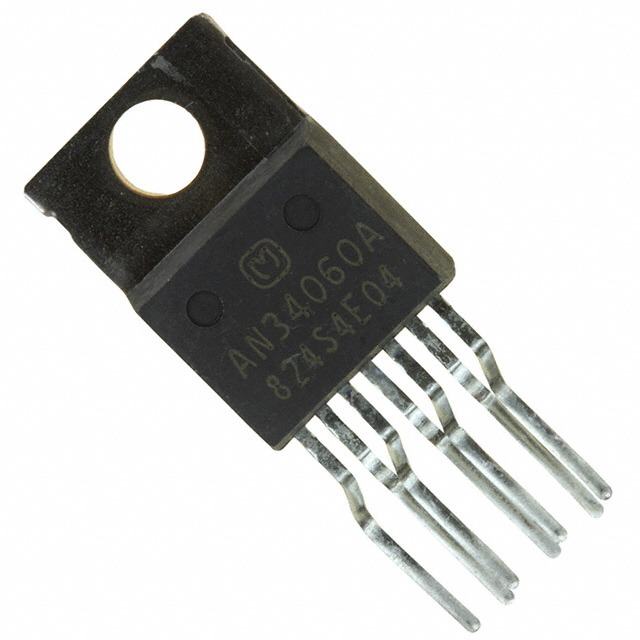

AN34060A
IC REG BUCK 2.5V TRPL TO220-7Manufacturer: Panasonic Electronic Components
Categories: DC DC Switching Regulators
Quality Control: Learn More
Panasonic Electronic Components AN34060A is a triple output, buck switching regulator IC. This component provides fixed positive output voltages of 2.5V, 3.3V, and 5V. Designed for step-down voltage conversion, the AN34060A operates with an input voltage range of 6V to 14V. It features a through-hole mounting type and is supplied in a TO-220-7 package. The operating temperature range for this device is -30°C to 85°C. This regulator is commonly utilized in power supply applications across various industries, including consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-7 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 3 |
| Function | Step-Down |
| Current - Output | - |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | - |
| Voltage - Input (Max) | 14V |
| Topology | Buck |
| Supplier Device Package | TO-220-7 |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 6V |
| Voltage - Output (Min/Fixed) | 2.5V, 3.3V, 5V |
