AN30180A-PR
IC REG BUCK PROG 1.2A 9WLCSPManufacturer: Panasonic Electronic Components
Categories: DC DC Switching Regulators
Quality Control: Learn More

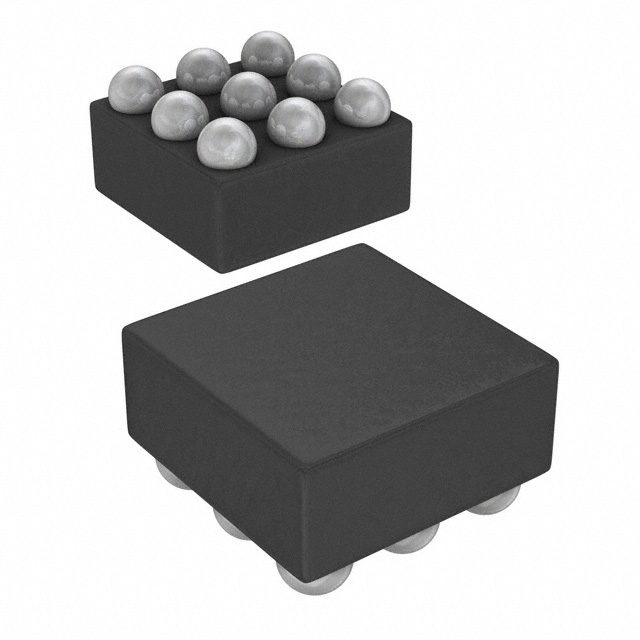

Panasonic Electronic Components AN30180A-PR is a highly efficient buck switching regulator with a 1.2A output current capability. This device features a programmable output voltage, supporting fixed levels of 1.2V, 1.35V, 1.85V, and 3.3V, catering to diverse power management needs. Operating with an input voltage range of 2.5V to 5.5V, it is designed for applications requiring a high switching frequency of 3MHz, enabling smaller external component sizes. The AN30180A-PR utilizes a synchronous rectification topology for enhanced efficiency and is housed in a compact 9-WLCSP package, suitable for space-constrained designs. Its compact footprint and performance characteristics make it well-suited for portable electronics and other miniaturized power systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-VFBGA, WLCSP |
| Output Type | Programmable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1.2A |
| Operating Temperature | - |
| Output Configuration | Positive |
| Frequency - Switching | 3MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 9-WLCSP (1.46x1.46) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 1.2V, 1.35V, 1.85V, 3.3V |
