LN03402P
LED CBI 5.3X1.8MM 3ELEM AMB THManufacturer: Panasonic Electronic Components
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

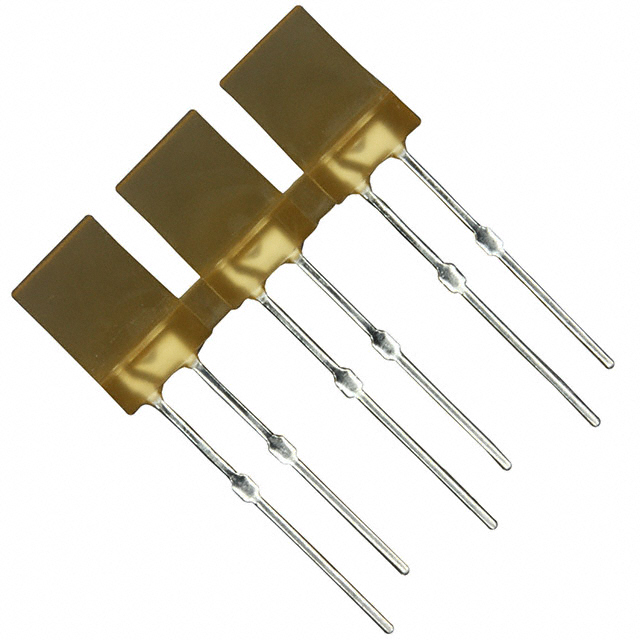

The Panasonic Electronic Components LN03402P is a Through Hole LED Circuit Board Indicator. This component features a 3-wide, Single In-line Package (SIP) configuration, housing three amber elements. Each individual LED in the bar array has a typical forward voltage of 2.2V and a specified forward current of 20mA, with a millicandela rating of 1.5mcd. The lens style is a diffused, tinted rectangle with a flat top, measuring 5.30mm x 1.80mm. This component is commonly utilized in industrial control systems, medical equipment, and consumer electronics for status indication and visual feedback. The LN03402P is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Amber (x 3) |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole |
| Millicandela Rating | 1.5mcd |
| Configuration | Bar - 3 Wide, SIP |
| Viewing Angle | - |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 590nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.30mm x 1.80mm |
