LN03302P
LED CBI 5.3X1.8MM 3ELEM GN THManufacturer: Panasonic Electronic Components
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

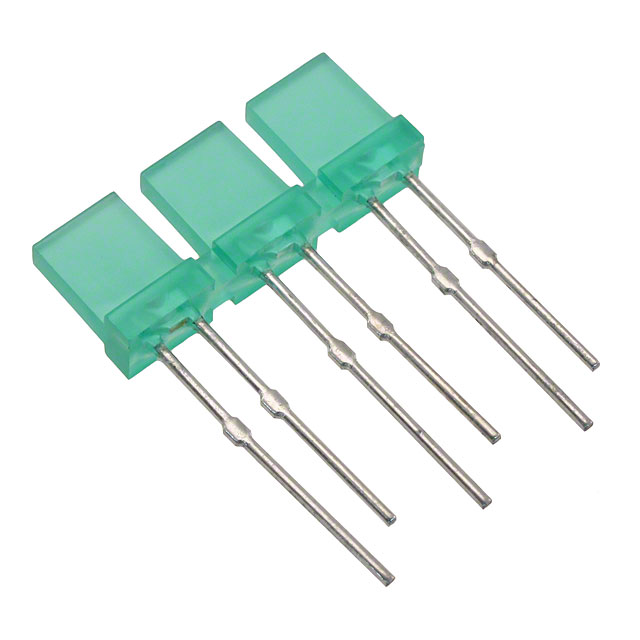

Panasonic Electronic Components offers the LN03302P, a three-element LED Circuit Board Indicator in a Single In-line Package (SIP) configuration. This component features a diffused, tinted green lens with a rectangular, flat-top profile measuring 5.30mm x 1.80mm. Each element is rated for 2.2V and a forward current of 20mA, with a typical peak wavelength of 565nm and a millicandela rating of 1.5mcd. The through-hole mounting style facilitates integration onto printed circuit boards. This indicator is commonly utilized in industrial automation, consumer electronics, and test and measurement equipment where visual status indication is critical. The unit is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Green (x 3) |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole |
| Millicandela Rating | 1.5mcd |
| Configuration | Bar - 3 Wide, SIP |
| Viewing Angle | - |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 565nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.30mm x 1.80mm |
