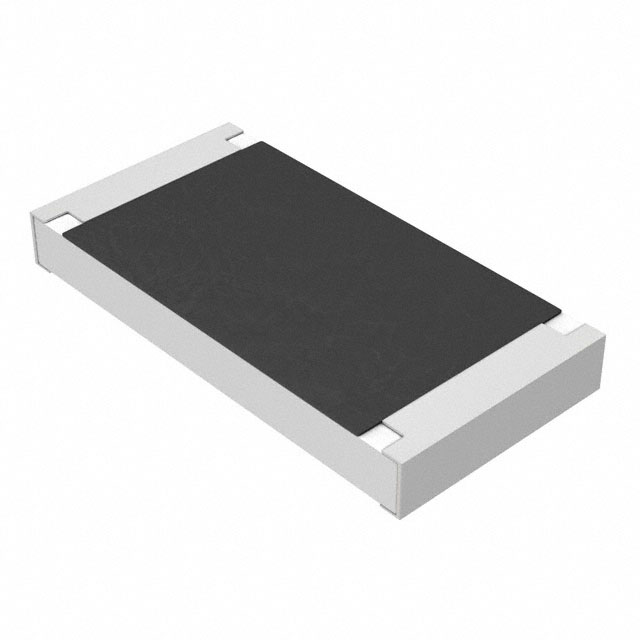

ERJ-12ZYJ112U
RES 1.1K OHM 5% 3/4W 2010Manufacturer: Panasonic Electronic Components
Categories: Chip Resistor - Surface Mount
Quality Control: Learn More
Panasonic Electronic Components ERJ-12Z series thick film chip resistor, part number ERJ-12ZYJ112U, offers a 1.1 kOhm resistance with a ±5% tolerance and a 0.75W power rating. This component is housed in a 2010 (5025 Metric) surface-mount package, measuring 5.00mm x 2.50mm with a maximum seated height of 0.70mm. It features a temperature coefficient of ±200ppm/°C and operates across a wide temperature range of -55°C to 155°C. Certified to Automotive AEC-Q200 standards, this resistor is suitable for demanding automotive applications. The ERJ-12ZYJ112U is supplied on tape and reel.
Additional Information
Series: ERJ-12ZRoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Power (Watts) | 0.75W, 3/4W |
| Tolerance | ±5% |
| Features | Automotive AEC-Q200 |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2010 (5025 Metric) |
| Temperature Coefficient | ±200ppm/°C |
| Size / Dimension | 0.197"" L x 0.098"" W (5.00mm x 2.50mm) |
| Composition | Thick Film |
| Operating Temperature | -55°C ~ 155°C |
| Ratings | AEC-Q200 |
| Number of Terminations | 2 |
| Supplier Device Package | 2010 |
| Height - Seated (Max) | 0.028"" (0.70mm) |
| Failure Rate | - |
| Resistance | 1.1 kOhms |
