MA4X19300L
BRIDGE RECT 1P 80V 70MA MINI4Manufacturer: Panasonic Electronic Components
Categories: Bridge Rectifiers
Quality Control: Learn More
Panasonic Electronic Components MA4X19300L is a single-phase bridge rectifier designed for surface mount applications. This component, packaged in the Mini4-G1 (TO-253-4, TO-253AA) configuration, offers a peak reverse voltage rating of 80V and an average forward rectified current capability of 70mA. The forward voltage drop is specified at a maximum of 1.2V at 70mA, with a low reverse leakage current of 100 nA at 80V. Operating at a junction temperature up to 150°C, this standard recovery rectifier is suitable for use in various industrial and commercial electronics, including power supplies and signal processing circuits. The MA4X19300L is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-253-4, TO-253AA |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | Mini4-G1 |
| Voltage - Peak Reverse (Max) | 80 V |
| Current - Average Rectified (Io) | 70 mA |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 70 mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 80 V |
Request a Quote
Clients Also Buy

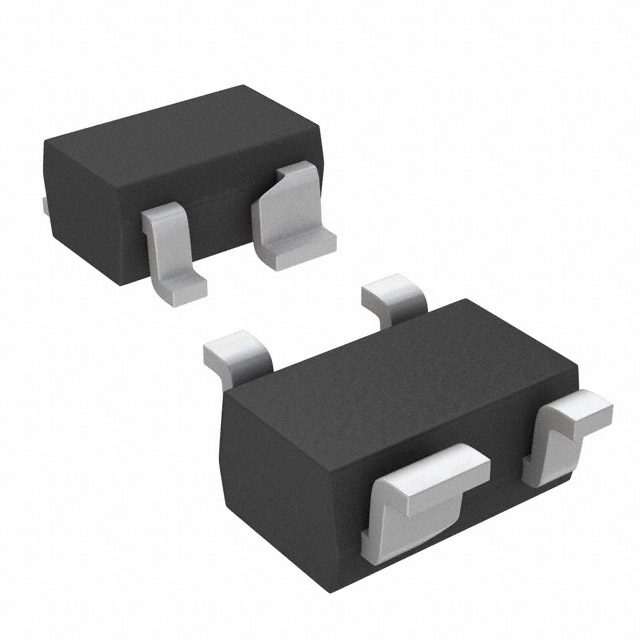

DA4X106U0R
