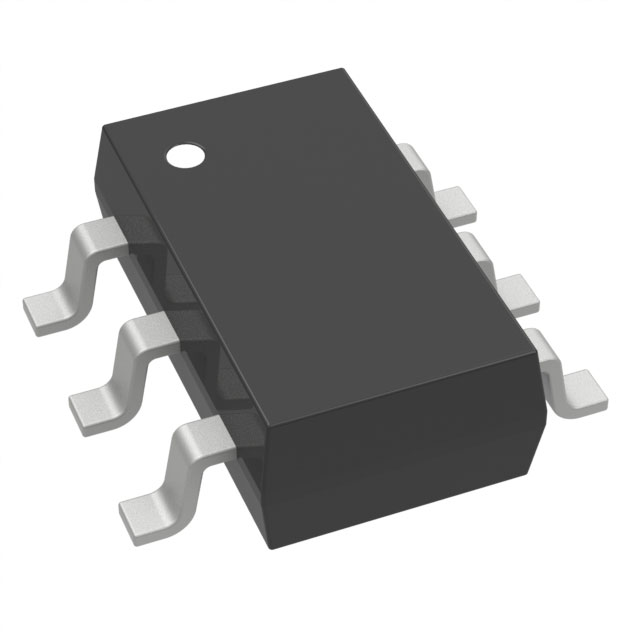

XP0555500L
TRANS 2NPN 20V 0.2A SMINI6Manufacturer: Panasonic Electronic Components
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Panasonic Electronic Components' XP0555500L is a dual NPN bipolar junction transistor (BJT) array designed for surface mount applications. This component features a collector-emitter breakdown voltage of 20V and a maximum collector current of 200mA. With a transition frequency of 500MHz and a minimum DC current gain (hFE) of 40 at 10mA and 1V, it is suitable for general-purpose amplification and switching in consumer electronics and industrial control systems. The device dissipates a maximum of 150mW and operates at temperatures up to 150°C. Packaged in a SMINI6-G1 (6-TSSOP, SC-88, SOT-363) configuration, it is supplied on tape and reel. Saturation voltage is specified at 250mV at 1mA base current and 10mA collector current.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Transistor Type | 2 NPN (Dual) |
| Operating Temperature | 150°C (TJ) |
| Power - Max | 150mW |
| Current - Collector (Ic) (Max) | 200mA |
| Voltage - Collector Emitter Breakdown (Max) | 20V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 10mA, 1V |
| Frequency - Transition | 500MHz |
| Supplier Device Package | SMINI6-G1 |
