XN0460100L

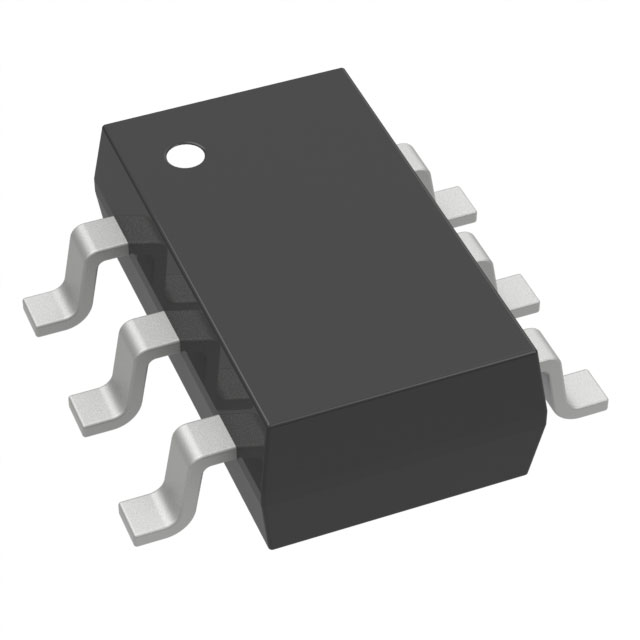

TRANS NPN/PNP 50V 0.1A MINI6Manufacturer: Panasonic Electronic Components
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Panasonic Electronic Components XN0460100L is a bipolar transistor array featuring one NPN and one PNP transistor, each rated for 50V collector-emitter breakdown voltage and 100mA collector current. This component offers a minimum DC current gain (hFE) of 160 at 2mA collector current and 10V Vce. The NPN transistor provides a transition frequency of 150MHz, while the PNP transistor operates at 80MHz. With a maximum power dissipation of 300mW, the device is suitable for applications requiring compact switching and amplification functions. The XN0460100L is housed in a MINI6-G1 (SOT-23-6) package, designed for surface mounting and supplied on tape and reel. Typical applications include digital logic level shifting and general-purpose switching in consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN, 1 PNP |
| Operating Temperature | 150°C (TJ) |
| Power - Max | 300mW |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 10mA, 100mA / 500mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 2mA, 10V |
| Frequency - Transition | 150MHz, 80MHz |
| Supplier Device Package | MINI6-G1 |
