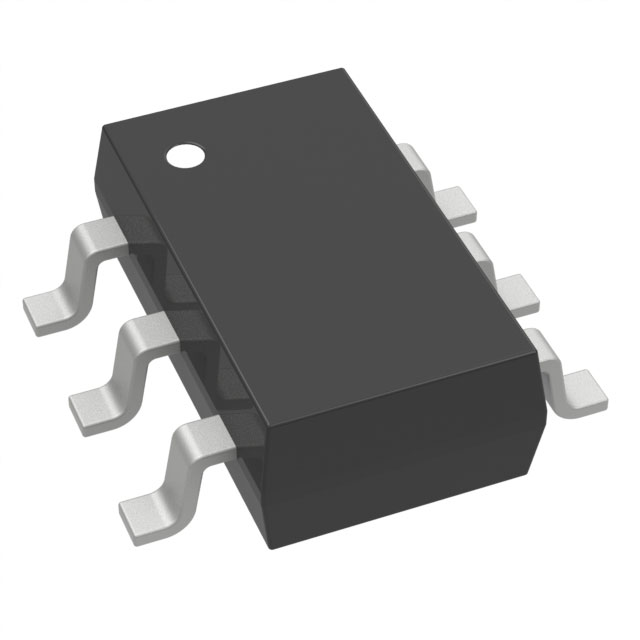

DMG204B10R
TRANS NPN/PNP 20V/50V MINI6Manufacturer: Panasonic Electronic Components
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Bipolar (BJT) Transistor Array 1 NPN, 1 PNP 20V, 50V 500mA, 100mA 150MHz 300mW Surface Mount Mini6-G4-B
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 10 week(s)Product Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN, 1 PNP |
| Operating Temperature | 150°C (TJ) |
| Power - Max | 300mW |
| Current - Collector (Ic) (Max) | 500mA, 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 20V, 50V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 20mA, 500mA / 500mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 2V / 210 @ 2mA, 10V |
| Frequency - Transition | 150MHz |
| Supplier Device Package | Mini6-G4-B |
