XP0121600L

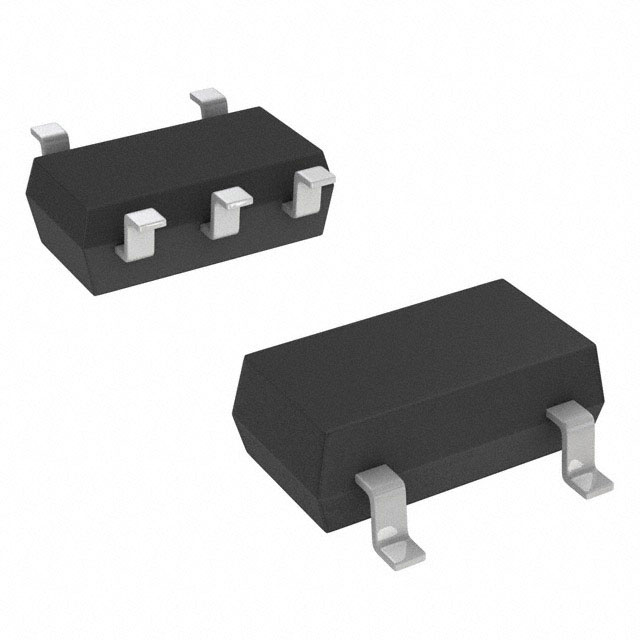

TRANS 2NPN PREBIAS 0.15W SMINI5Manufacturer: Panasonic Electronic Components
Categories: Bipolar Transistor Arrays, Pre-Biased
Quality Control: Learn More
Panasonic Electronic Components XP0121600L is a dual NPN pre-biased bipolar transistor designed for surface mounting in SMini5-G1 (5-TSSOP, SC-70-5, SOT-353) packages. This component features a 50V collector-emitter breakdown voltage and a maximum collector current of 100mA. With a transition frequency of 150MHz and a minimum DC current gain (hFE) of 160 at 5mA and 10V, it offers efficient amplification. The integrated 4.7kOhm base resistor simplifies circuit design. Power dissipation is rated at 150mW. This device is supplied on tape and reel (TR) and finds application in various electronic control circuits and signal conditioning within consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Mounting Type | Surface Mount |
| Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Power - Max | 150mW |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 5mA, 10V |
| Frequency - Transition | 150MHz |
| Resistor - Base (R1) | 4.7kOhms |
| Resistor - Emitter Base (R2) | - |
| Supplier Device Package | SMini5-G1 |
