NP0H3A300A

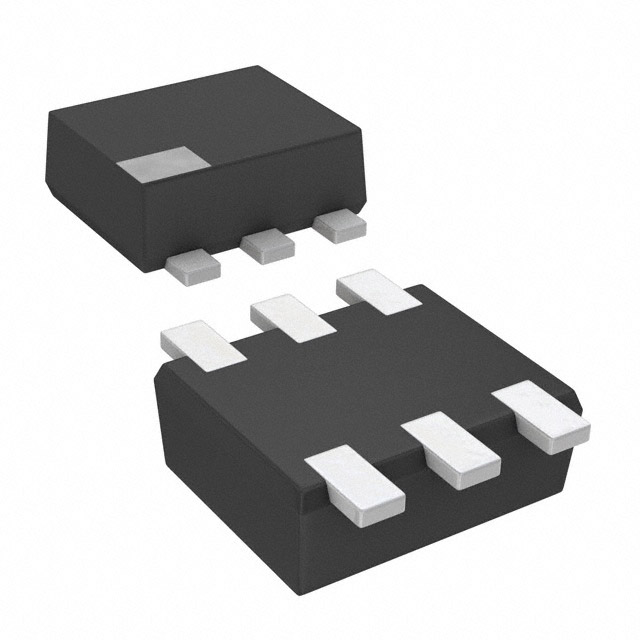

TRANS PREBIAS NPN/PNP SSSMINI6Manufacturer: Panasonic Electronic Components
Categories: Bipolar Transistor Arrays, Pre-Biased
Quality Control: Learn More
Panasonic Electronic Components NP0H3A300A is a pre-biased bipolar transistor array featuring a 1 NPN and 1 PNP configuration within a SSSMini6-F1 package. This dual transistor array is designed for surface mount applications, supplied on tape and reel (TR). It offers a collector-emitter breakdown voltage of 50V and a maximum collector current of 80mA. The component boasts a transition frequency of 150MHz for the NPN and 80MHz for the PNP. Each transistor includes integrated base resistors of 47kOhms, simplifying circuit design and reducing component count. The device dissipates a maximum power of 125mW. Applications for this pre-biased transistor array can be found in industrial automation, consumer electronics, and communication systems requiring compact and efficient amplification or switching.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-963 |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Power - Max | 125mW |
| Current - Collector (Ic) (Max) | 80mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Frequency - Transition | 150MHz, 80MHz |
| Resistor - Base (R1) | 47kOhms |
| Resistor - Emitter Base (R2) | 47kOhms |
| Supplier Device Package | SSSMini6-F1 |
