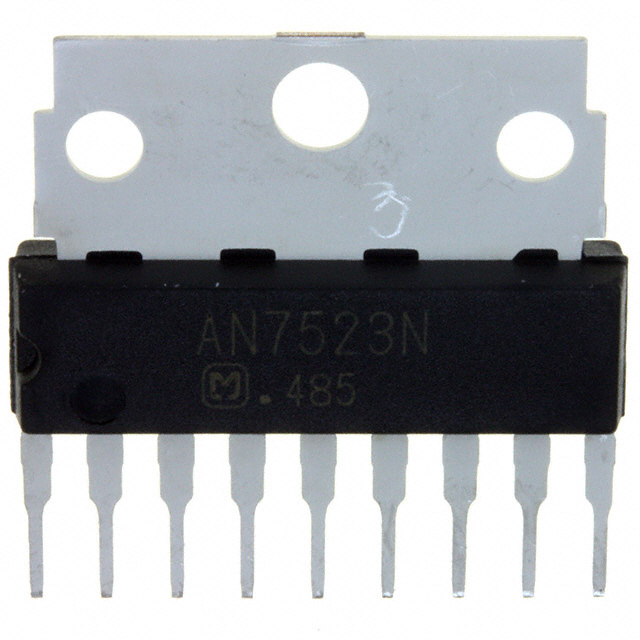

AN7523N
IC AMP CLASS AB MONO 4W 9HSIPManufacturer: Panasonic Electronic Components
Categories: Audio Amplifiers
Quality Control: Learn More
Panasonic Electronic Components AN7523N is a 1-channel Class AB audio amplifier IC. This device integrates standby functionality, thermal protection, and adjustable volume control. Delivering 4W into an 8-ohm load, the AN7523N is housed in a 9-HSIP package suitable for through-hole mounting. Its operating voltage range is 3.5V to 13.5V, with an ambient operating temperature range of -25°C to 70°C. The AN7523N is commonly utilized in applications such as portable audio devices and consumer electronics where efficient mono amplification is required.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Download Free CAD Model:
Technical Details:
| Features | Standby, Thermal Protection, Volume Control |
| Packaging | - |
| Package / Case | 9-SIP |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | -25°C ~ 70°C (TA) |
| Voltage - Supply | 3.5V ~ 13.5V |
| Max Output Power x Channels @ Load | 4W x 1 @ 8Ohm |
| Supplier Device Package | 9-HSIP |
