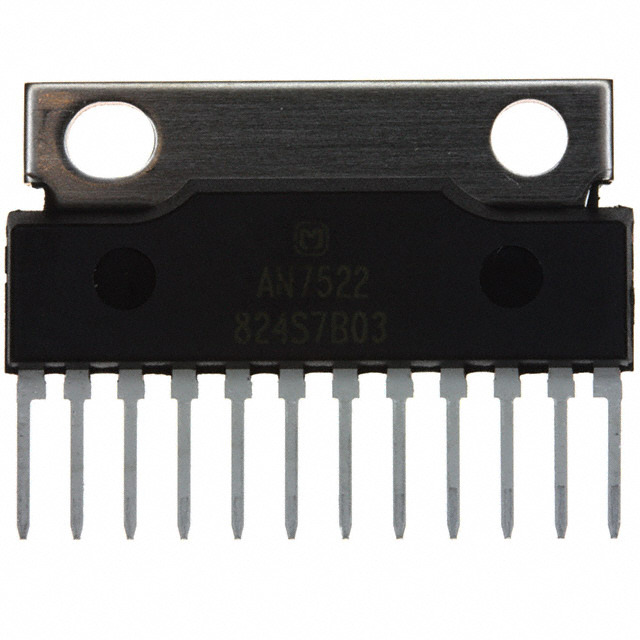

AN7522
IC AMP CLASS AB STEREO 3W 12SILManufacturer: Panasonic Electronic Components
Categories: Audio Amplifiers
Quality Control: Learn More
Panasonic Electronic Components AN7522 is a stereo Class AB audio amplifier IC. This 2-channel amplifier IC delivers up to 3W per channel into an 8-ohm load. The AN7522 features integrated volume control and a standby function. It operates within a supply voltage range of 3.5V to 13.5V and is housed in a 12-SIL package with a tab, designed for through-hole mounting. The operating temperature range is -25°C to 70°C. Applications for this component include consumer electronics and audio systems. The device is supplied in tubes.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Standby, Volume Control |
| Packaging | Tube |
| Package / Case | 12-SIP + Tab |
| Output Type | 2-Channel (Stereo) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | -25°C ~ 70°C (TA) |
| Voltage - Supply | 3.5V ~ 13.5V |
| Max Output Power x Channels @ Load | 3W x 2 @ 8Ohm |
| Supplier Device Package | 12-SIL |
