AN7164
IC AMP CLASS AB MONO 30W 12SILManufacturer: Panasonic Electronic Components
Categories: Audio Amplifiers
Quality Control: Learn More
Panasonic Electronic Components AN7164 is a mono Class AB audio amplifier IC designed for high-power audio applications. This 12-SIL package component delivers up to 30W of output power into an 8-ohm load, making it suitable for demanding audio systems. Key features include integrated short-circuit and thermal protection, as well as a standby mode for power management. The AN7164 operates within a supply voltage range of 8.3V to 24V and has an operating temperature range of -30°C to 75°C (TA). Its through-hole mounting type and 12-SIL + Tab package facilitate integration into various electronic designs. This amplifier finds application in consumer electronics, automotive audio, and professional audio equipment requiring robust and efficient audio amplification.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Short-Circuit and Thermal Protection, Standby |
| Packaging | Tube |

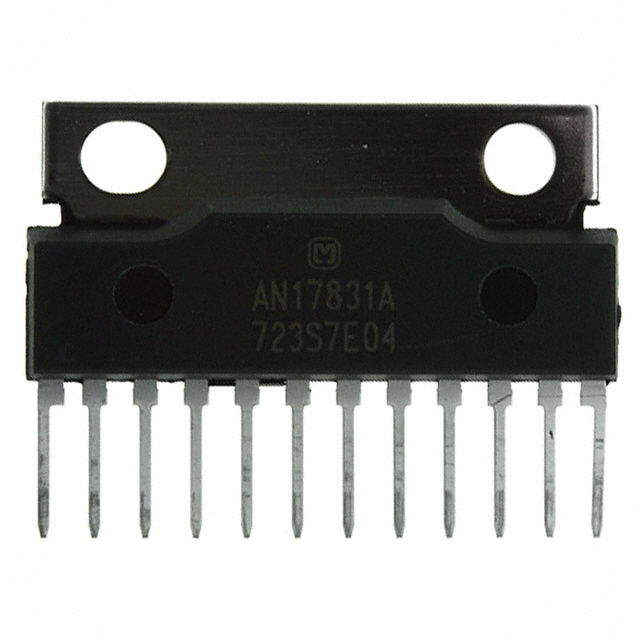

| Package / Case | 12-SIP + Tab |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | -30°C ~ 75°C (TA) |
| Voltage - Supply | 8.3V ~ 24V |
| Max Output Power x Channels @ Load | 30W x 1 @ 8Ohm |
| Supplier Device Package | 12-SIL |
