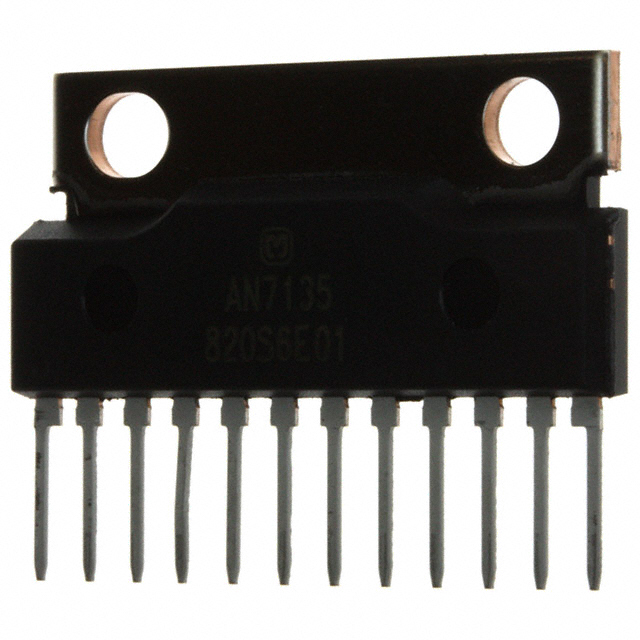

AN7135-CM
IC AMP CLASS AB STER 7.5W 12SILManufacturer: Panasonic Electronic Components
Categories: Audio Amplifiers
Quality Control: Learn More
Panasonic Electronic Components AN7135-CM is a 2-channel stereo Class AB audio amplifier IC. This device delivers a robust 7.5W per channel into a 3 Ohm load, making it suitable for demanding audio applications. Featuring a 12-SIL package with a tab for enhanced thermal dissipation, the AN7135-CM operates within a supply voltage range of 5V to 18V. Key integrated features include standby mode for power management and built-in thermal protection to ensure reliable operation. The device is supplied in tube packaging for efficient handling and is designed for through-hole mounting. Its performance characteristics make it a strong candidate for use in consumer electronics and automotive audio systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Standby, Thermal Protection |
| Packaging | Tube |
| Package / Case | 12-SIP + Tab |
| Output Type | 2-Channel (Stereo) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | -30°C ~ 75°C (TA) |
| Voltage - Supply | 5V ~ 18V |
| Max Output Power x Channels @ Load | 7.5W x 2 @ 3Ohm |
| Supplier Device Package | 12-SIL |
