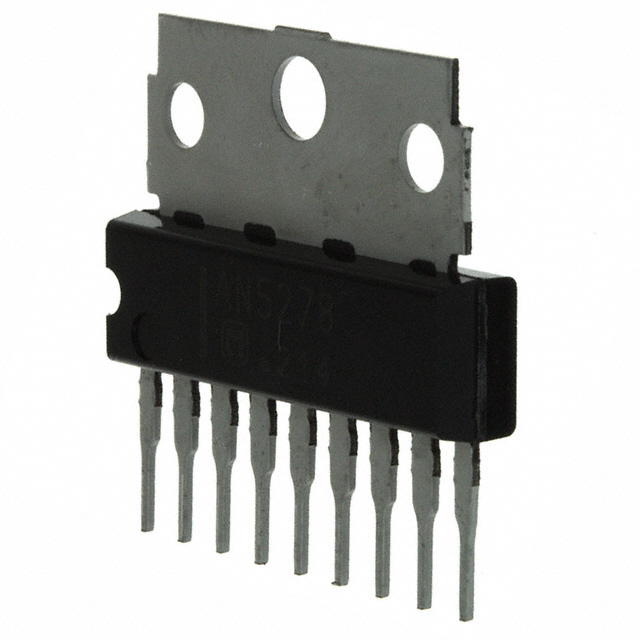

AN5278
IC AMP CLASS AB MONO 9W 9HSIPManufacturer: Panasonic Electronic Components
Categories: Audio Amplifiers
Quality Control: Learn More
Panasonic Electronic Components AN5278, a single-channel Class AB audio amplifier, delivers 9W into an 8-ohm load. This component, housed in a 9-HSIP package, offers integrated mute, tone, and volume control functionalities. Designed for through-hole mounting, the AN5278 operates across a supply voltage range of 12V to 26V and is specified for an ambient temperature range of -20°C to 70°C. Its robust feature set and reliable performance make it suitable for applications in consumer electronics and audio systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Mute, Tone and Volume Control |
| Packaging | Bulk |
| Package / Case | 9-SIP |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Voltage - Supply | 12V ~ 26V |
| Max Output Power x Channels @ Load | 9W x 1 @ 8Ohm |
| Supplier Device Package | 9-HSIP |
