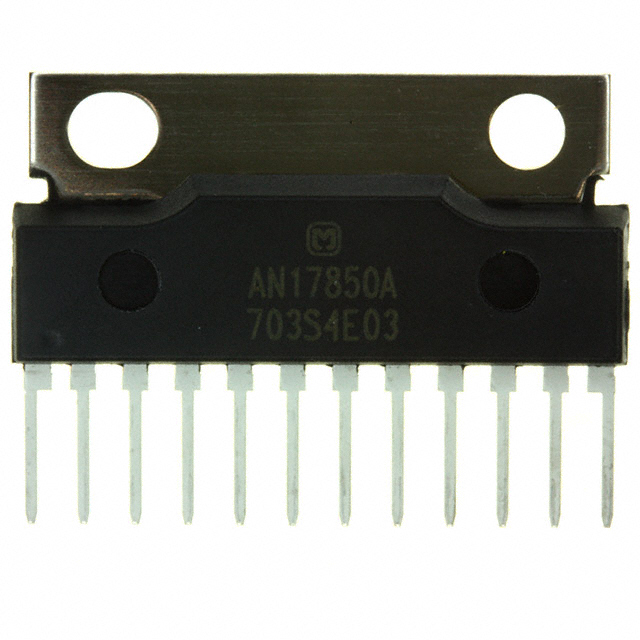

AN17850A
IC AMP CLASS AB MONO 70 W 12SILManufacturer: Panasonic Electronic Components
Categories: Audio Amplifiers
Quality Control: Learn More
Panasonic Electronic Components AN17850A is a 1-channel, Class AB audio amplifier IC. This component is designed for mono operation and delivers up to 70W output power into a 6 Ohm load. Key features include Mute, Short-Circuit, and Thermal Protection, along with a Standby mode for power efficiency. The device operates within a supply voltage range of 10V to 32V and is housed in a 12-SIL package with an additional tab for mounting. Its through-hole mounting type facilitates integration into various electronic designs. The operating temperature range is -25°C to 75°C. This amplifier is commonly utilized in applications such as professional audio systems and home theater equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Mute, Short-Circuit and Thermal Protection, Standby |
| Packaging | Tube |
| Package / Case | 12-SIP + Tab |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | -25°C ~ 75°C (TA) |
| Voltage - Supply | 10V ~ 32V |
| Max Output Power x Channels @ Load | 70 W x 1 @ 6Ohm |
| Supplier Device Package | 12-SIL |
