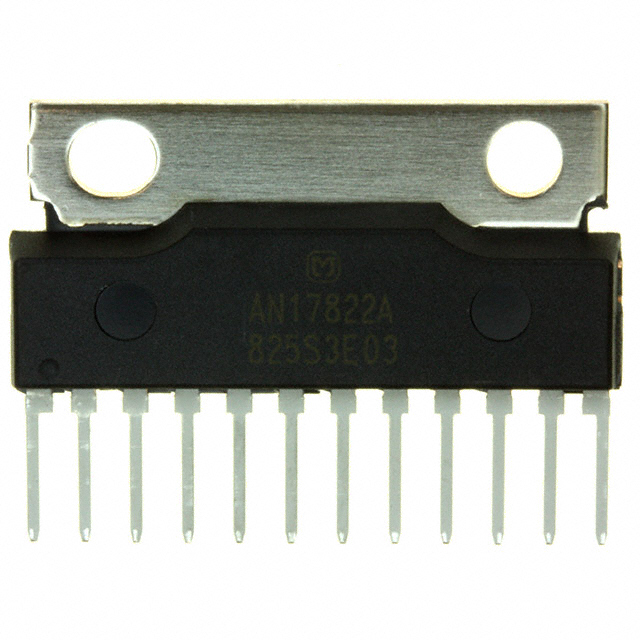

AN17822A
IC AMP CLASS AB STEREO 5W 12SILManufacturer: Panasonic Electronic Components
Categories: Audio Amplifiers
Quality Control: Learn More
The Panasonic Electronic Components AN17822A is a 2-channel Class AB audio amplifier IC. This device delivers 5W per channel into an 8-ohm load, operating from a 3.5V to 15V supply. Key features include standby mode, thermal protection, and integrated volume control. The AN17822A is housed in a 12-SIL package with a tab for enhanced thermal management and is suitable for through-hole mounting. This component is widely utilized in consumer electronics, including audio systems and entertainment devices. The operating temperature range is -25°C to 70°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Standby, Thermal Protection, Volume Control |
| Packaging | Tube |
| Package / Case | 12-SIP + Tab |
| Output Type | 2-Channel (Stereo) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | -25°C ~ 70°C (TA) |
| Voltage - Supply | 3.5V ~ 15V |
| Max Output Power x Channels @ Load | 5W x 2 @ 8Ohm |
| Supplier Device Package | 12-SIL |
