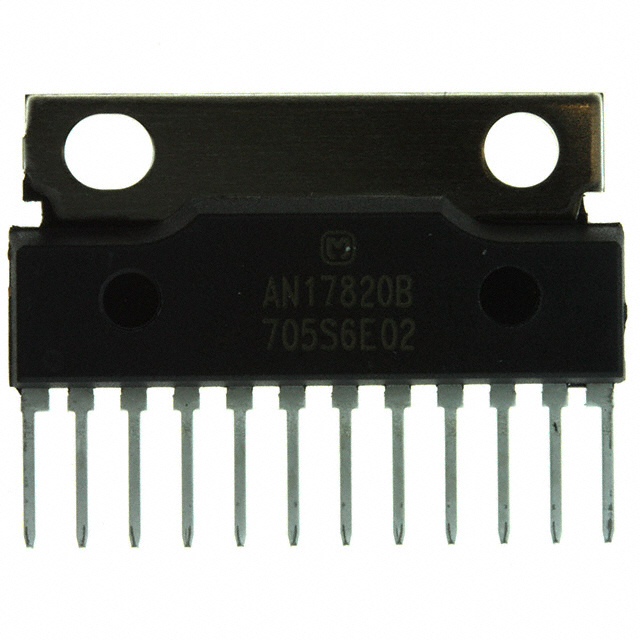

AN17820B
IC AMP CLASS AB STER 7.5W 12SILManufacturer: Panasonic Electronic Components
Categories: Audio Amplifiers
Quality Control: Learn More
Panasonic Electronic Components AN17820B is a 2-channel Class AB audio amplifier IC. This device delivers 7.5W per channel into an 8 Ohm load, suitable for stereo audio applications. Key features include standby mode for power management and thermal protection to ensure reliability under varying operating conditions. Integrated volume control simplifies system design. The AN17820B operates from a 5V to 18V supply voltage range and is housed in a 12-SIL package with a tab for enhanced thermal dissipation, designed for through-hole mounting. This component finds application in consumer electronics, audio systems, and automotive sound solutions.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Standby, Thermal Protection, Volume Control |
| Packaging | Tube |
| Package / Case | 12-SIP + Tab |
| Output Type | 2-Channel (Stereo) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | 25°C ~ 70°C (TA) |
| Voltage - Supply | 5V ~ 18V |
| Max Output Power x Channels @ Load | 7.5W x 2 @ 8Ohm |
| Supplier Device Package | 12-SIL |
