AN17808B
IC AMP CLASS AB STEREO 7W 12SILManufacturer: Panasonic Electronic Components
Categories: Audio Amplifiers
Quality Control: Learn More

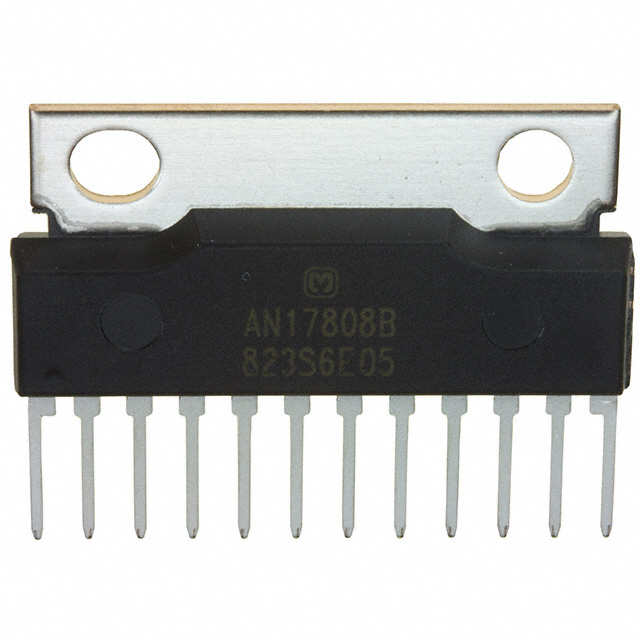

Panasonic Electronic Components AN17808B is a Class AB stereo audio amplifier IC. This 12-SIL packaged component delivers 7W per channel into an 8-ohm load, supporting supply voltages from 10V to 24V. Key features include mute and standby functions for power management, along with integrated thermal protection for robust operation. The AN17808B is suitable for applications requiring high-quality audio amplification, commonly found in consumer electronics and automotive audio systems. Its through-hole mounting type and 12-SIL package facilitate integration into various system designs. The operating temperature range is -25°C to 75°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Mute, Standby, Thermal Protection |
| Packaging | Tube |
| Package / Case | 12-SIP + Tab |
| Output Type | 2-Channel (Stereo) |
| Mounting Type | Through Hole |
| Type | Class AB |
| Operating Temperature | -25°C ~ 75°C (TA) |
| Voltage - Supply | 10V ~ 24V |
| Max Output Power x Channels @ Load | 7W x 2 @ 8Ohm |
| Supplier Device Package | 12-SIL |
