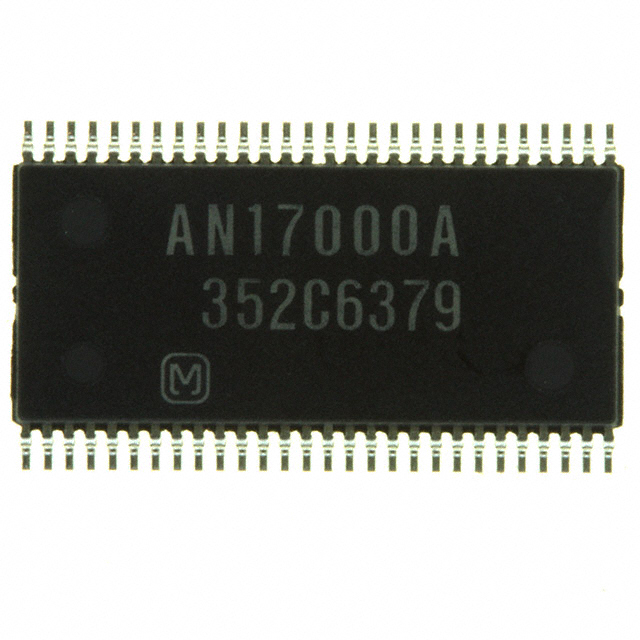

AN17000A-BF
IC AMP CLASS AB STEREO 1W 56HSOPManufacturer: Panasonic Electronic Components
Categories: Audio Amplifiers
Quality Control: Learn More
Panasonic Electronic Components AN17000A-BF is a 2-channel Class AB audio amplifier IC. This device delivers 1W per channel into an 8-ohm load, suitable for stereo headphone applications. Key features include integrated Bass Boost, Mute, Standby functions, and Volume Control for comprehensive audio management. Thermal protection is incorporated to ensure reliable operation. The AN17000A-BF is housed in a 56-HSOP package, designed for surface mounting on printed circuit boards. This component finds application in portable audio devices and other consumer electronics requiring efficient stereo amplification. It operates within a supply voltage range of 4.5V to 5.5V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Bass Boost, Mute, Standby, Thermal Protection, Volume Control |
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-TFSOP (0.240"", 6.10mm Width) Exposed Pad |
| Output Type | 2-Channel (Stereo) with Stereo Headphones |
| Mounting Type | Surface Mount |
| Type | Class AB |
| Operating Temperature | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Max Output Power x Channels @ Load | 1W x 2 @ 8Ohm |
| Supplier Device Package | 56-HSOP |
