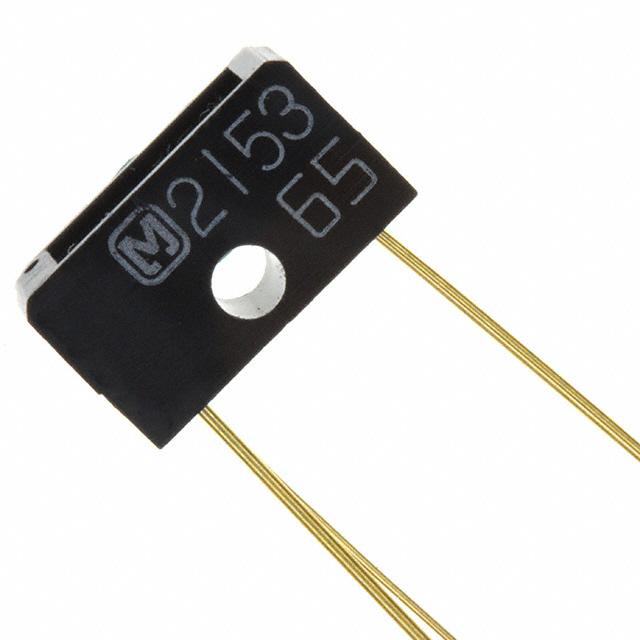

CNZ2153
SENSR OPTO TRANS 3MM REFL TH PCBManufacturer: Panasonic Electronic Components
Categories: Analog Output
Quality Control: Learn More
Panasonic Electronic Components CNZ2153 is a reflective optical sensor featuring a phototransistor output. This through-hole mounted component has a sensing distance of 0.118 inches (3mm). Key electrical specifications include a maximum collector current (Ic) of 20 mA and a maximum DC forward current (If) of 50 mA. The collector-emitter breakdown voltage is rated at a maximum of 30 V. Response times for this sensor are 6µs for both the rise and fall times. The PCB mount package is supplied in bulk packaging. This component is commonly utilized in automation, consumer electronics, and industrial control applications requiring non-contact object detection.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Output Type | Phototransistor |
| Sensing Distance | 0.118"" (3mm) |
| Sensing Method | Reflective |
| Mounting Type | Through Hole |
| Response Time | 6µs, 6µs |
| Current - Collector (Ic) (Max) | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
Request a Quote
Clients Also Buy
CNB10020RL
SENSOR OPTO TRANS 1MM REFL SMD

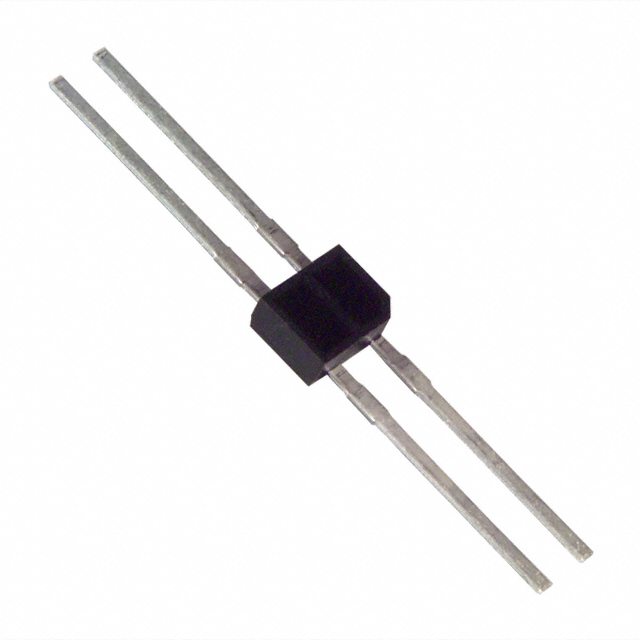

CNB13020R
SENSOR OPTO TRANS 1MM REFL AXIAL

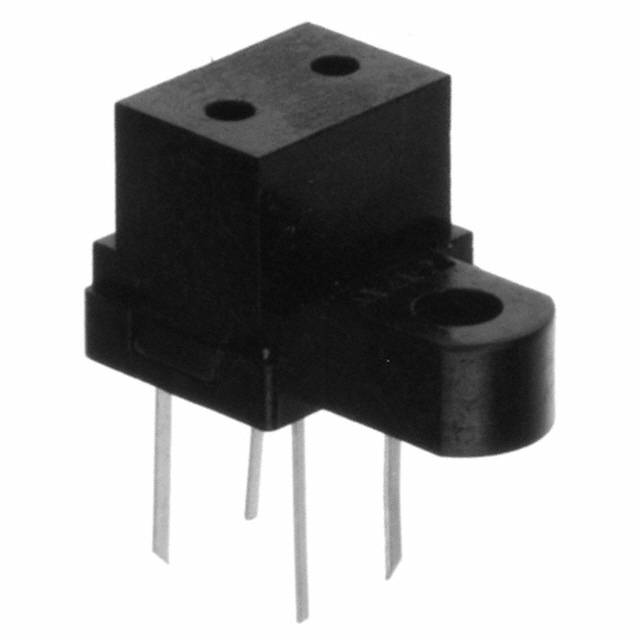

CNB1304H
