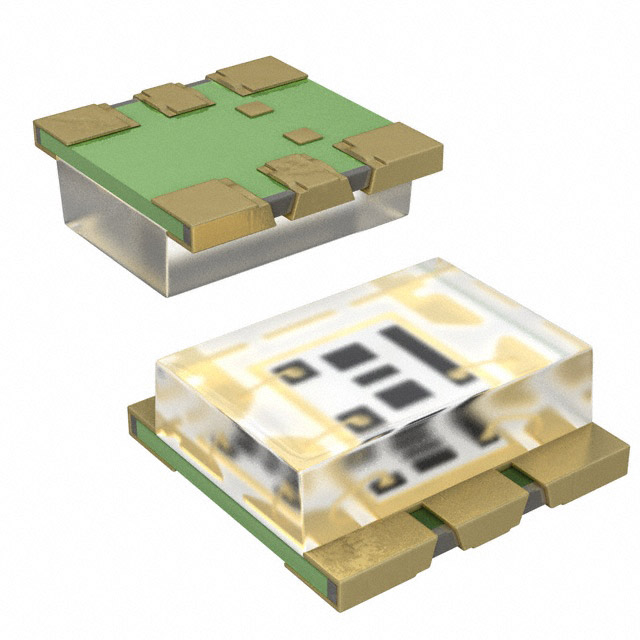

PNA4K01F
SENSOR OPT 560NM AMBIENT 6 SMDManufacturer: Panasonic Electronic Components
Categories: Ambient Light, IR, UV Sensors
Quality Control: Learn More
Panasonic Electronic Components PNA4K01F is an optical sensor designed for ambient light detection. This 6-SMD, No Lead component operates within a voltage range of 1.4V to 5.5V and features a peak sensitivity at 560nm. The PNA4K01F outputs a current proportional to the incident light, making it suitable for applications requiring precise light level monitoring. It is packaged in Tape & Reel (TR) for efficient automated assembly and has an operating temperature range of -30°C to 85°C. This sensor finds application in consumer electronics, industrial automation, and automotive systems where ambient light conditions influence device operation or display characteristics.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Wavelength | 560nm |
| Output Type | Current |
| Mounting Type | Surface Mount |
| Type | Ambient |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 1.4V ~ 5.5V |
| Supplier Device Package | - |
| Proximity Detection | No |
Request a Quote
Clients Also Buy

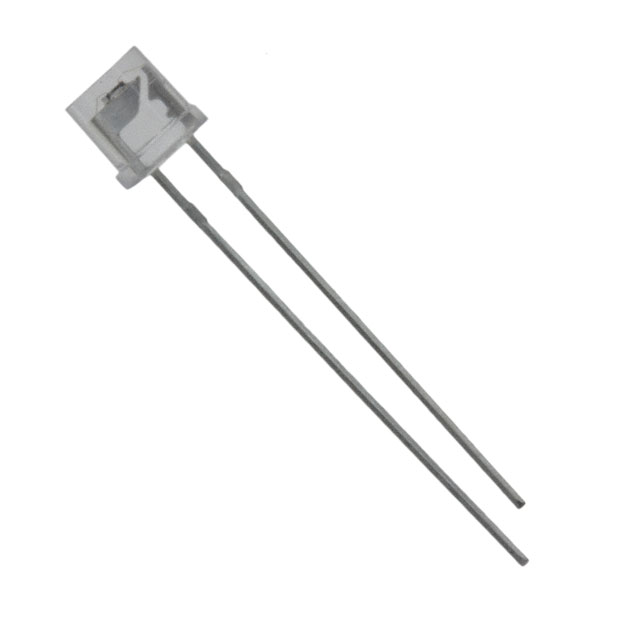

AMS302
SENSOR OPT 580NM AMBIENT RADIAL

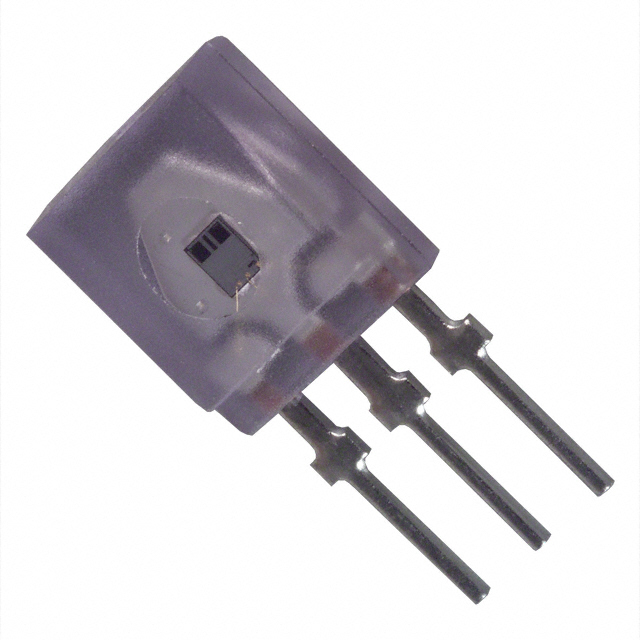

PNA4603H00LB
