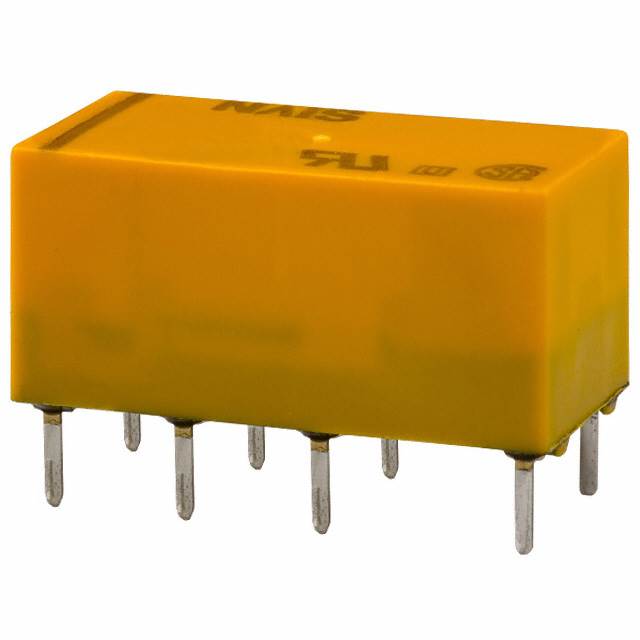

DS2Y-S-DC24V
RELAY GEN PURPOSE DPDT 2A 24VManufacturer: Panasonic Electric Works
Categories: Signal Relays, Up to 2 Amps
Quality Control: Learn More
General Purpose Relay DPDT (2 Form C) Through Hole
Additional Information
Series: DS2YRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | PC Pin |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Coil Current | 8.3 mA |
| Coil Type | Non Latching |
| Seal Rating | - |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Must Release Voltage | 2.4 VDC |
| Must Operate Voltage | 16.8 VDC |
| Operate Time | 4 ms |
| Release Time | 3 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 500VA, 440W |
