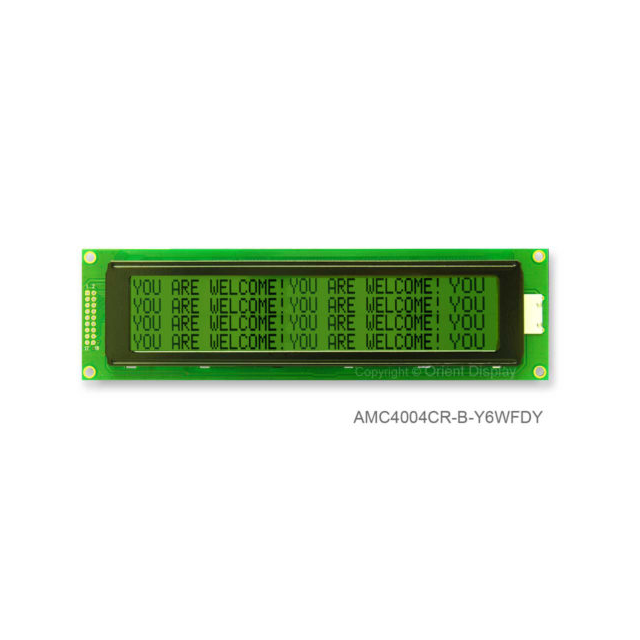

AMC4004CR-B-Y6WFDY
LCD COB CHAR 40X4 Y/G TRANSFManufacturer: ORIENT DISPLAY
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel, 8-Bit 190.00mm x 54.00mm x 14.00mm
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | Parallel, 8-Bit |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 148.00mm L x 30.30mm W |
| Character Size | 4.89mm H x 2.78mm W |
| Display Format | 40 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.50mm W x 0.55mm H |
| Controller Type | S6A0069 |
| Outline L x W x H | 190.00mm x 54.00mm x 14.00mm |
| Text Color | Dark Blue |
| Background Color | Yellow/Green |
| Number of Characters | 160.0 |
Request a Quote
