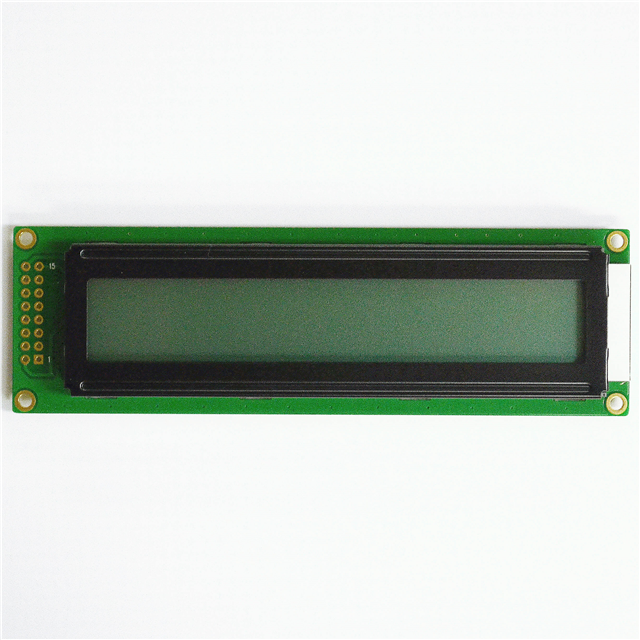

AMC2402AR-B-G6WFDW
24X2 CHARACTER STN GRAYManufacturer: ORIENT DISPLAY
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 118.00mm x 36.00mm x 13.60mm
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - White |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 5V |
| Viewing Area | 93.50mm L x 16.00mm W |
| Character Size | 3.20mm H x 5.55mm W |
| Display Format | 24 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.60mm W x 0.65mm H |
| Controller Type | ST7066Uv22 |
| Outline L x W x H | 118.00mm x 36.00mm x 13.60mm |
| Text Color | Blue |
| Background Color | - |
| Number of Characters | 48.0 |
Request a Quote
