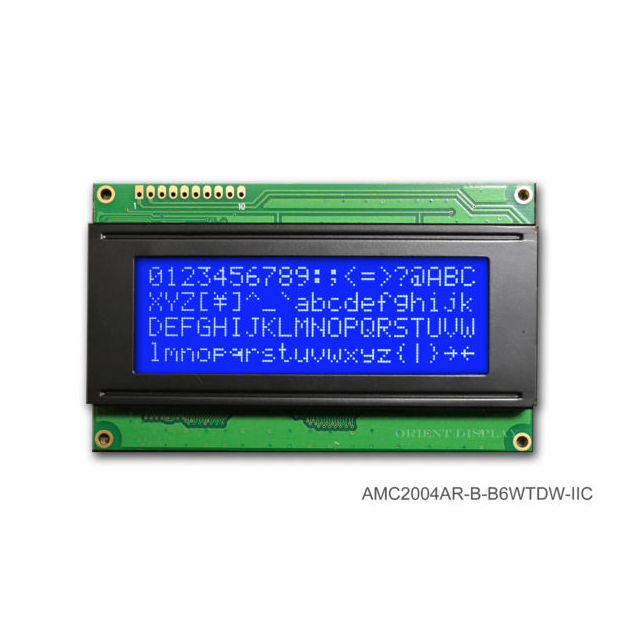

AMC2004AR-B-B6WTDW-I2C
COB CHAR 20X4 BLUE TRANSM I2CManufacturer: ORIENT DISPLAY
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White I2C 98.00mm x 60.00mm x 15.00mm
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | I2C |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 76.00mm L x 25.20mm W |
| Character Size | 4.75mm H x 2.95mm W |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.55mm W x 0.55mm H |
| Controller Type | AC780S |
| Outline L x W x H | 98.00mm x 60.00mm x 15.00mm |
| Text Color | White |
| Background Color | Blue |
| Number of Characters | 80.0 |
