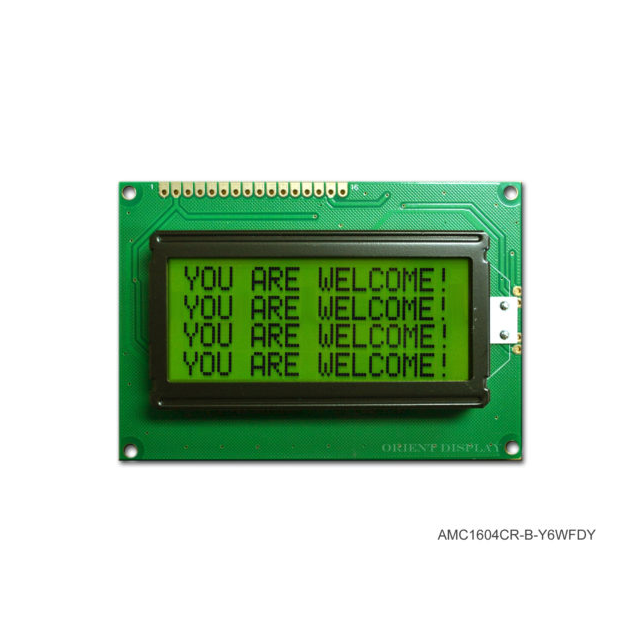

AMC1604CR-B-Y6WFDY
LCD COB CHAR 16X4 Y/G TRANSFManufacturer: ORIENT DISPLAY
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel, 8-Bit 87.00mm x 60.00mm x 14.50mm
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | Parallel, 8-Bit |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 61.80mm L x 25.20mm W |
| Character Size | 4.76mm H x 2.96mm W |
| Display Format | 16 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.56mm W x 0.56mm H |
| Controller Type | AIP31066L-001 |
| Outline L x W x H | 87.00mm x 60.00mm x 14.50mm |
| Text Color | Dark Blue |
| Background Color | Yellow/Green |
| Number of Characters | 64.0 |
