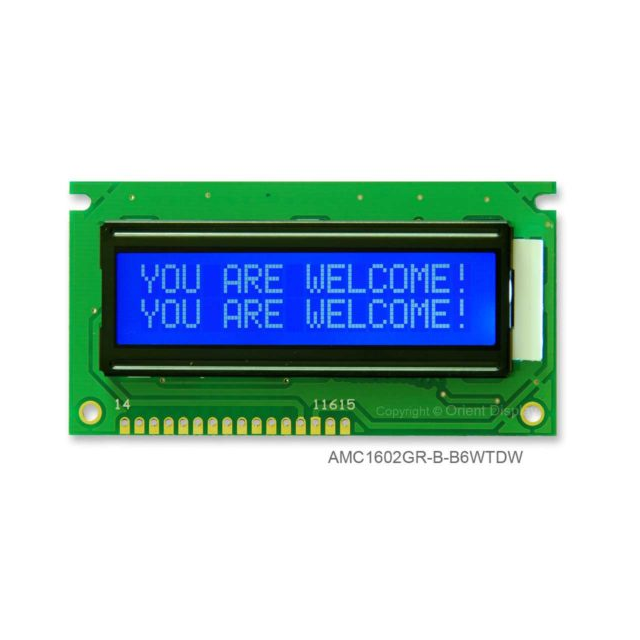

AMC1602GR-B-B6WTDW
LCD COB CHAR 16X2 BLUE TRANSMManufacturer: ORIENT DISPLAY
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel, 8-Bit 84.00mm x 44.00mm x 14.00mm
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 8-Bit |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 64.50mm L x 15.50mm W |
| Character Size | 5.55mm H x 2.95mm W |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.55mm W x 0.65mm H |
| Controller Type | S6A0069 |
| Outline L x W x H | 84.00mm x 44.00mm x 14.00mm |
| Text Color | White |
| Background Color | Blue |
| Number of Characters | 32.0 |
